RJ-325

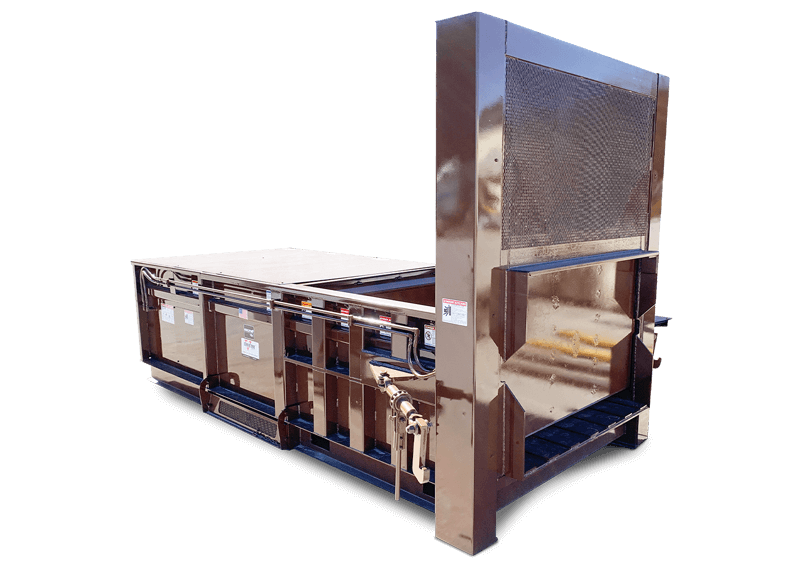

Marathon's RJ-325 is a real work horse! Its proven capability assures top performance in heavy commercial and industrial applications. The RJ-325 is unique to other compactors in its class, providing a large 60" W x 67 1/2" L clear top opening and a 33" deep charge box ­ a feature greatly appreciated at peak loading times or when compacting bulky items!

Features

• Allen-Bradley Motor Starter
• TEFC (totally enclosed fan cooled) motor
• Quick Release Motor Mount for easy servicing and maintenance
• TRICON Fullness Assurance System. This time shifting device eliminates all but one limit switch. It also produces better compaction ratios by making the ram dwell against the trash reducing the "memory" and springback. TRICON offers better cold weather performance and extends the life of the machine.

Superior Engineering...

The RJ-325 is stress engineered for durability. That means the strength is where it belongs ­ like the 1/2" charge box floor reinforced with seven heavy duty steel channels, 1/2" steel plate ram face backed with 10" structural channels and extra rugged reinforced sides.

Ram Guide System

The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

Side-Mount Power Unit

Side-Mounted Power Unit for ease-of-maintenance – eliminates the need to go inside the compactor body for servicing.

Limit Switch and all other parts of the power unit are easily accessible for ease-of-maintenance.

Reset Button for the Motor Starter is also located on the outside, which eliminates entry into the control box

Advanced Control System

The RJ-325 features a Control Station with advanced, simplified 2-button control system. It is key-operated, fully automatic and contained in a weatherproof NEMA 4 enclosure. Connected to the power pack with 13' of sealtite, the controls can be located for operator convenience.

• Side-Mount Power Unit
• Power Unit Weather Cover
• Control Panel Box
• Motor Starter Reset Button
• Limit Switch
• Ram
• Ram Guide Shoes with Replaceable Wear Strips

Dimension	A	B	C	D	E	*F	*G	*H	I
Imperial	173-3/4"	79"	48-9/16"	69-1/8"	60"	75"	160-3/4"	6-1/2"	31-1/2"
Metric	3035 mm	2007 mm	1233 mm	1756 mm	1524 mm	1905 mm	2705 mm	165 mm	800 mm

Dimension	J	K	L	M	N	O	P	Q
Imperial	10"	102-7/8"	70-7/8"	39-7/16"	9"	38-1/2"	14-3/4"	5"
Metric	254 mm	1873 mm	1162 mm	1002 mm	229 mm	978 mm	375 mm	127 mm

* At Bolt Centers (reference dimensions only)

Charge Box Capacity
[Mfrs. Rating]	3.15 cy	2.41 m3
[WASTEC Rating]	2.55 cy	1.95 m3
Clear Top Opening	67.5" X 60"	1715 mm x 1524 mm
Performance Data:
Cycle Time	50 s	50 s
Total Normal Force	46,700 lb	208 kN
Total Maximum Force	55,100 lb	245 kN
Normal Ram Face Pressure	26.8 psi	185 kPa
Maximum Ram Face Pressure	31.7 psi	219 kPa
Ram Penetration	13"	330 mm
Electrical Equipment:
Electrical Motor 3/60-208 230/460	15 hp	11.1 kW
Electrical Control Voltage	120 VAC	120 VAC
UL Labeled Panel Box: Type NEMA 4, All Circuits Fused
Standard 2 Button Controls: Keylock Start/ Mushroom Stop Connected to 13' Sealtite
Hydraulic Equipment:
Hydraulic Pump Capacity	18.5 gpm	70 L/min.
Normal Pressure	1650 psi	114 bar
Maximum Pressure	1950 psi	134 bar
Hydraulic Cylinder	6" Bore x 4" Rod	152 mm x 102 mm
Reservoir Capacity	20 gal.	76 L.
Weight	5700 lbs.	2586 kg

Optional Features Available

The optional TrashMinder® is the most advanced method for reporting and measuring container fullness as well as for managing user access and billing. Click Here for details.

Multi-cycle timer, dual controls, ozone odor control system, security chutes, hoppers, cart dumpers and many other options are also available as well as a full line of compaction containers.

Visit our Options web pages to choose from a wide range of steel and operational options and accessories.

Pictures on this page are illustrative only. Specifications are subject to change without notice to accommodate improvements to the equipment. Certified in compliance with ANSI Regulation Z245.2, all OSHA standards, and certified under WASTEC's Stationary Compactor Certification Program. stationary line must be used with safe practice and in accordance with said regulations and standards.
