RJ-575hd stationary Trash Compactors

Marathon® RamJet® RJ-575HD Stationary Trash Compactors are high capacity, heavy-duty trash compactors, ideal for industrial and commercial applications where large volumes of solid waste are generated. Its rugged construction and large hydraulic power unit allow maximum compaction performance. The RJ-575HD stationary trash compactor features a large 95″ by 59 1/2″ clear top opening to accommodate oversized crates and cartons.

Engineered for Durability

The high-capacity 5.5 cubic yard RJ-575HD stationary trash compactor is ideal for heavy industrial applications. The large hydraulic power unit and oversized clear top opening make it well suited for compacting high volumes of pallets, crates, and other bulky solid wastes.

Have Questions About The RJ-575 HD Series Trash Compactor?

Contact your local Marathon® Compaction team today to request a complimentary site survey.

3 Yr. Structure | 2 Yr. Parts | 1 Yr. Labor

Introducing The Marathon® Compaction Solutions Warranty

Marathon Equipment is pleased to announce the release of our updated Warranty Coverage program. This warranty will take effect and be applicable on all products sold on or after June 1, 2021. Please note: this warranty plan is not retroactive to products sold prior to June 1, 2021. Our existing Signature Series® Warranty, Compactor Warranty, and Auger Warranties have been combined into a new Compaction Solutions Warranty. The Compaction Solutions Warranty includes 3-year structural warranty, 2-year part warranty, and 1-year labor warranty.



Cart Dumpers, Chutes, and Hoppers

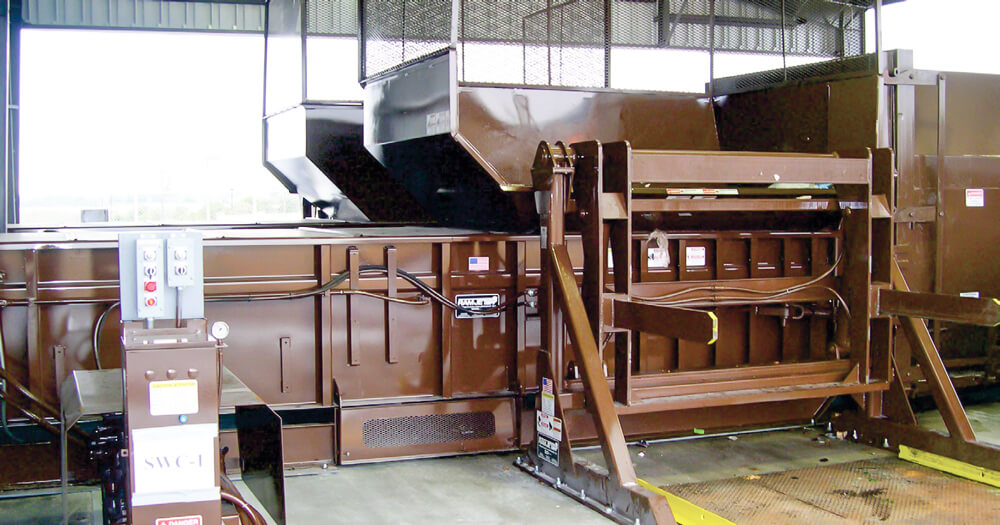

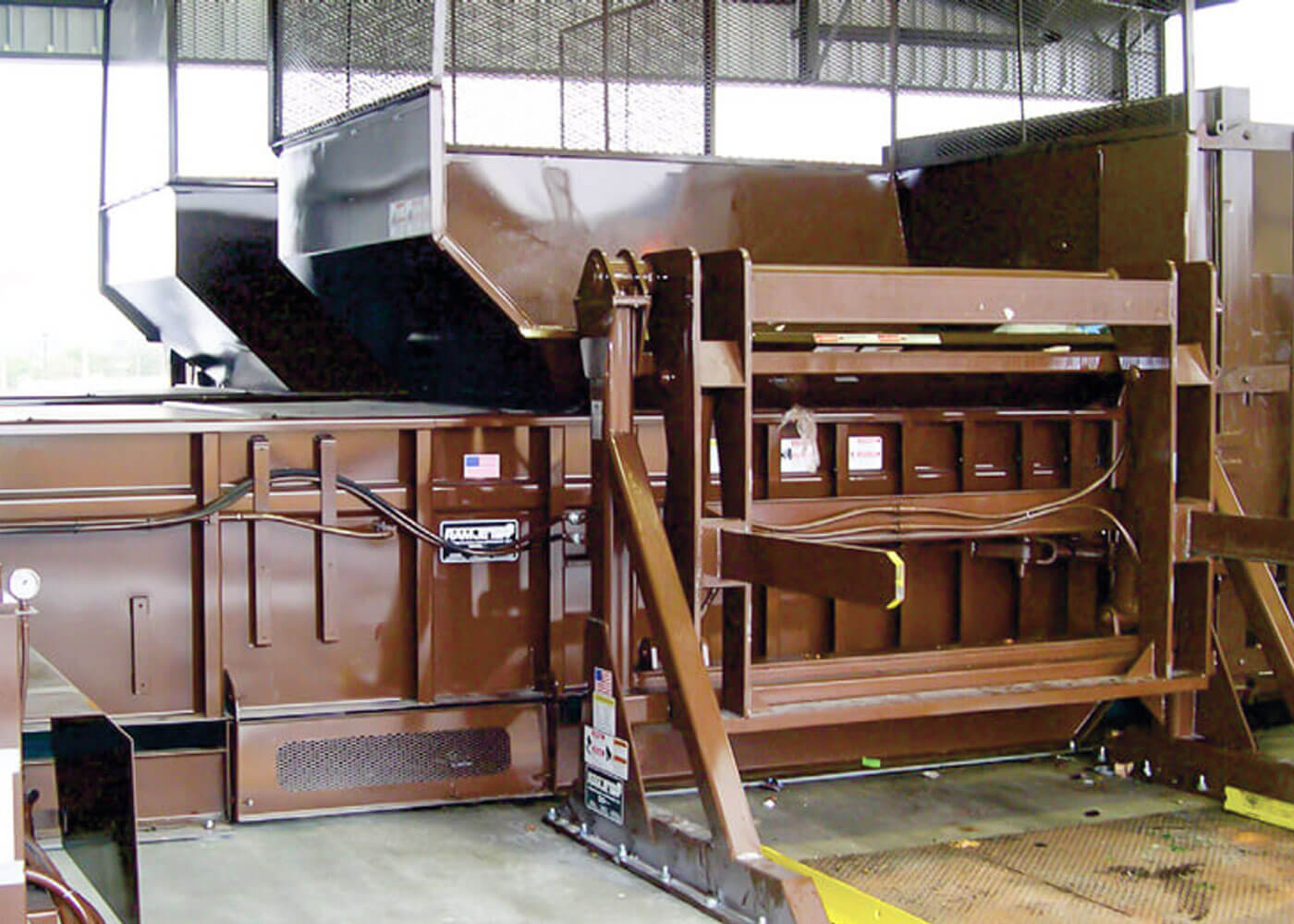

The RJ-575HD can be fitted with a variety of material handling equipment such as chutes, hoppers, and dumpers. The RJ-575HD shown is fitted with a side-fed hopper and a ground-level dumper. Cart dumpers can be custom built to your specifications to accommodate existing cart systems.

Transfer Station Applications

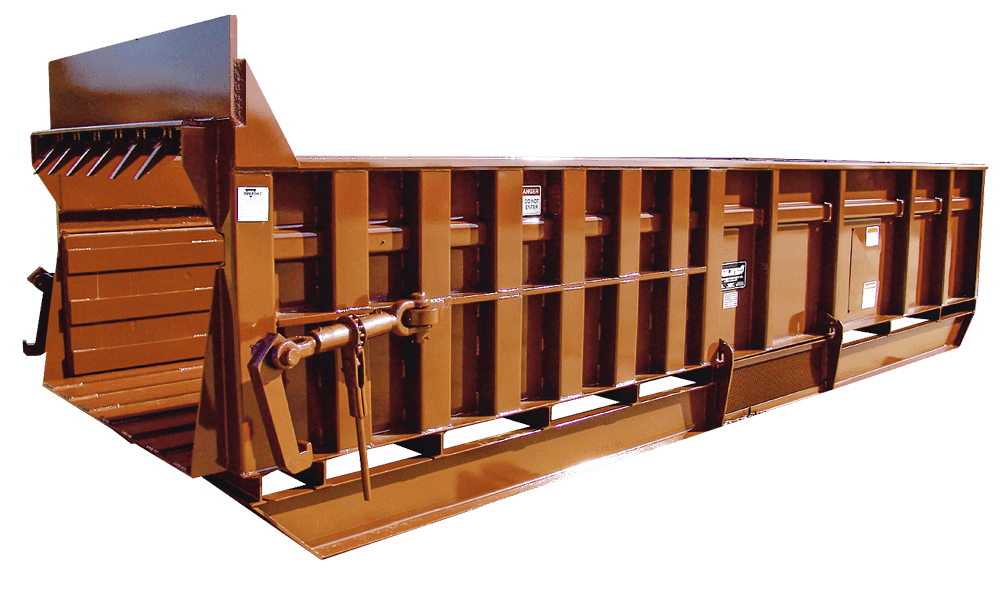

The RJ-575HD is designed for transfer station applications for municipalities and private contractors. A conveniently located RJ-575HD transfer facility will eliminate the need for trips to the landfill by intermediate collection vehicles resulting in fuel, maintenance, and labor cost reductions. Compacting into large compaction containers or transfer trailers could also help to further reduce dumping fees.

RJ-575HD Stationary Compactor Features & Benefits

  • Designed to handle heavy-duty waste streams
  • Ideal for small transfer stations or municipal drop-off centers
  • Heavy-duty design and high-compaction force yield excellent volume reduction with MSW and limited amounts of C&D waste streams
  • Large hydraulic power unit allows for maximum compactor performance
  • Large 95″ x 59 1/2″ clear top opening accommodates oversized crates and cartons
  • 4″ I-beam reinforcement throughout
  • Heavy-duty ram with 3/4″ steel face plate and 3/8″ top
  • Cast-iron ram guides for extended floor life
  • Sides constructed from 1/4″ thick steel with 3/8″ liner plates
  • 4″ by 5″ boxed channel vertical side supports
  • Hefty 6″ by 8″ by 3/4″ angle breaker bar with 1″ by 12″ steel plate reinforcement that easily handles the beating of daily industrial trash.
  • 96,000 lbs. maximum compaction force

RJ-575HD Stationary Compactor Standard Features

Designed to handle heavy-duty waste streams

High-compaction force yields excellent volume reduction with MSW and limited amounts C&D waste streams



Large hydraulic power unit allows for maximum compactor performance

Large 95″ x 59 1/2″ clear top opening accommodates oversized crates and cartons

The high-capacity 5.5 cubic yard RJ-575HD is ideal for heavy industrial applications. The large hydraulic power unit and oversized clear top opening make it well suited for high volumes of pallets, crates, and other bulky solid wastes.

The RJ-575HD features an advanced, simplified three-button control system. It is key-operated, fully automatic, and contained in a weatherproof NEMA 4 enclosure. Connected to the power pack with 13′ of conduit, the controls can be located for operator convenience.

The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

Bayne Cart Lifter

AVAILABLE WITH BAYNE THINLINE® CART LIFTER

Equipped with an integral cart lifter, the RJ-575 offers an economical and safety-conscious solution for a wide variety of waste material handling applications.

Bayne Thinline cart lifters work with standard two-bar roll-out carts and can lift up to 750 lbs. Lifters have a durable, powder-coated finish that can stand up to the elements.

PERFECT FOR TIPPER-SYSTEM APPLICATIONS

The RJ-575 is the perfect choice for applications requiring a tipper system. These tippers can extend the benefits of compaction to all areas of operation while keeping equipment investments to a minimum. Carts or containers can be located at individual waste generation sites within the operation, and then emptied into the compactor with the cart-tipper option.

SC2 Tipper System Applications

Compaction Options

The perfect configuration for your specific needs

Options are an essential part of virtually any compactor installation. Whether the options are for safety issues, convenience, operation efficiencies, or monitoring systems, waste-handling equipment can be fitted with a variety of customizable features to meet the demands of the application. Marathon compactor options include several categories such as: container-fullness measuring systems, usage-measurement systems, cycle-control systems, power pack options, odor-control systems, and steel options. View Compactor Options
