RJ-500 HD heavy duty commercial stationary trash compactors

RJ-500 & rj-500hd stationary Compactors

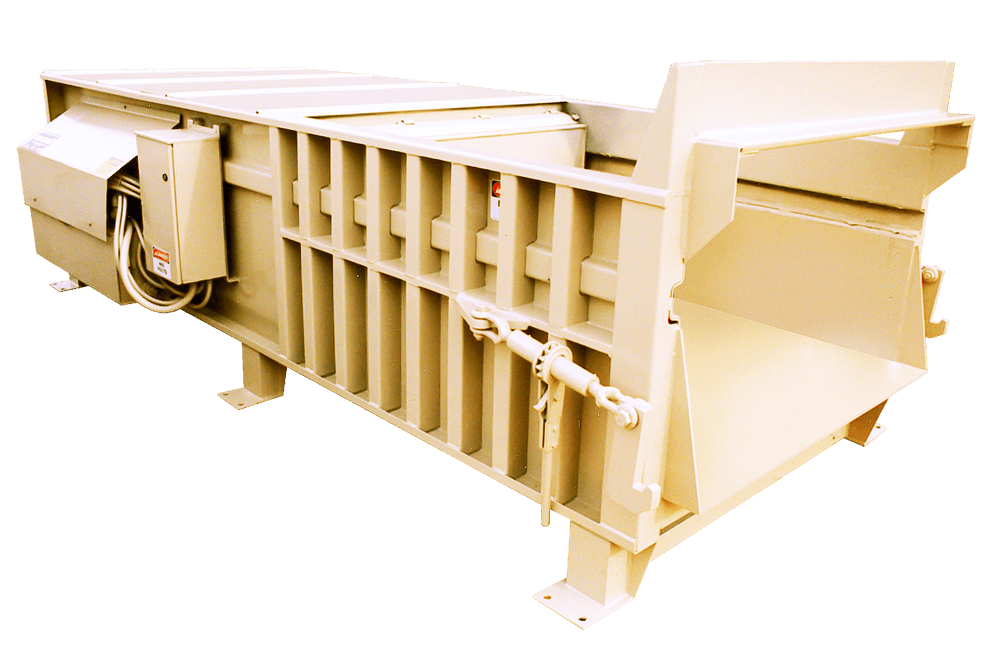

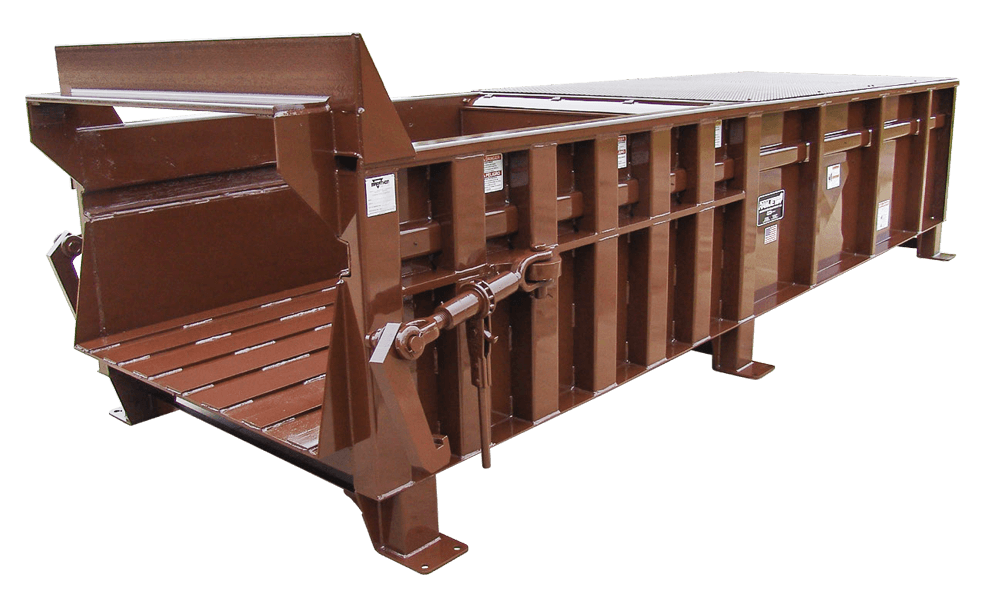

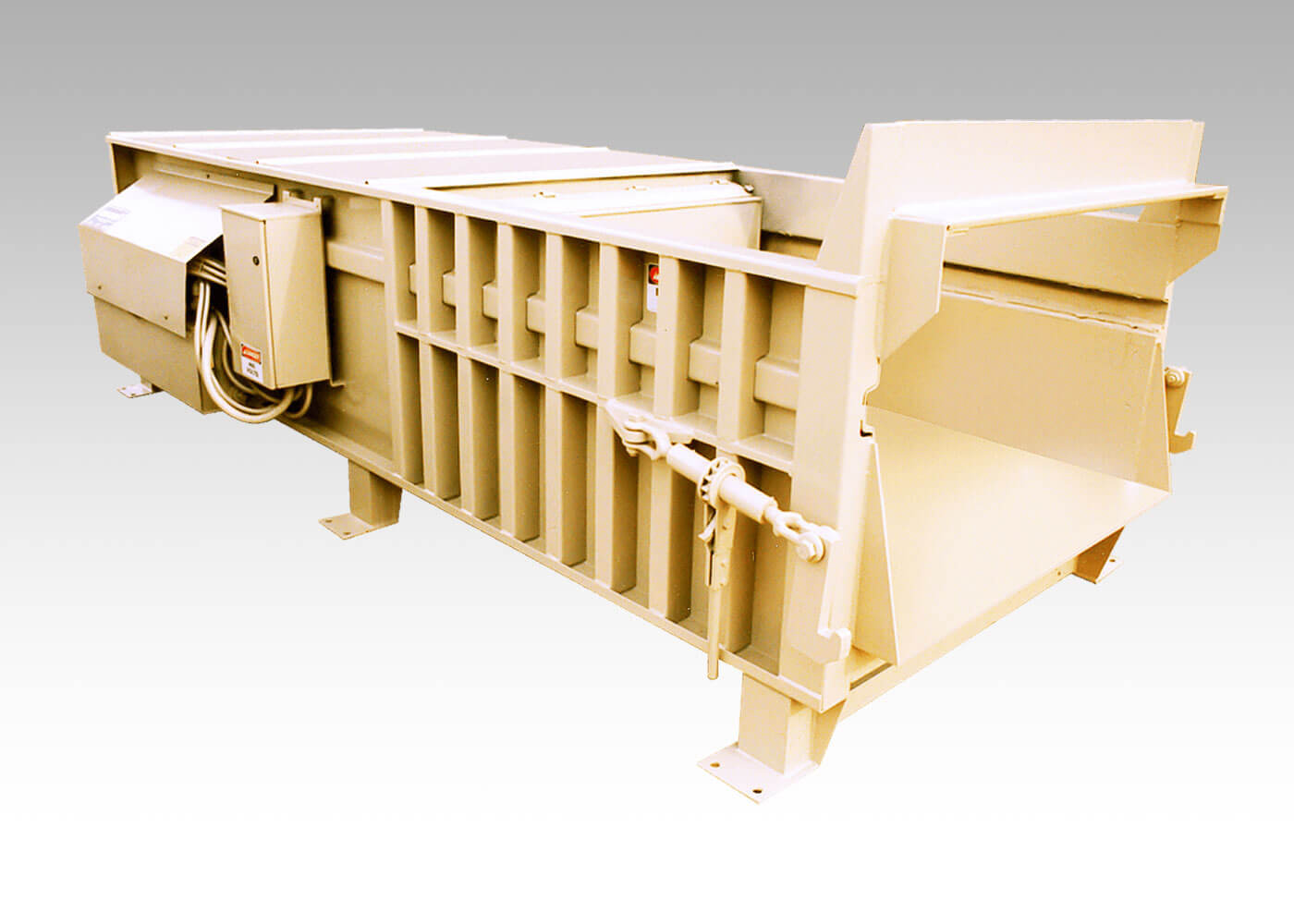

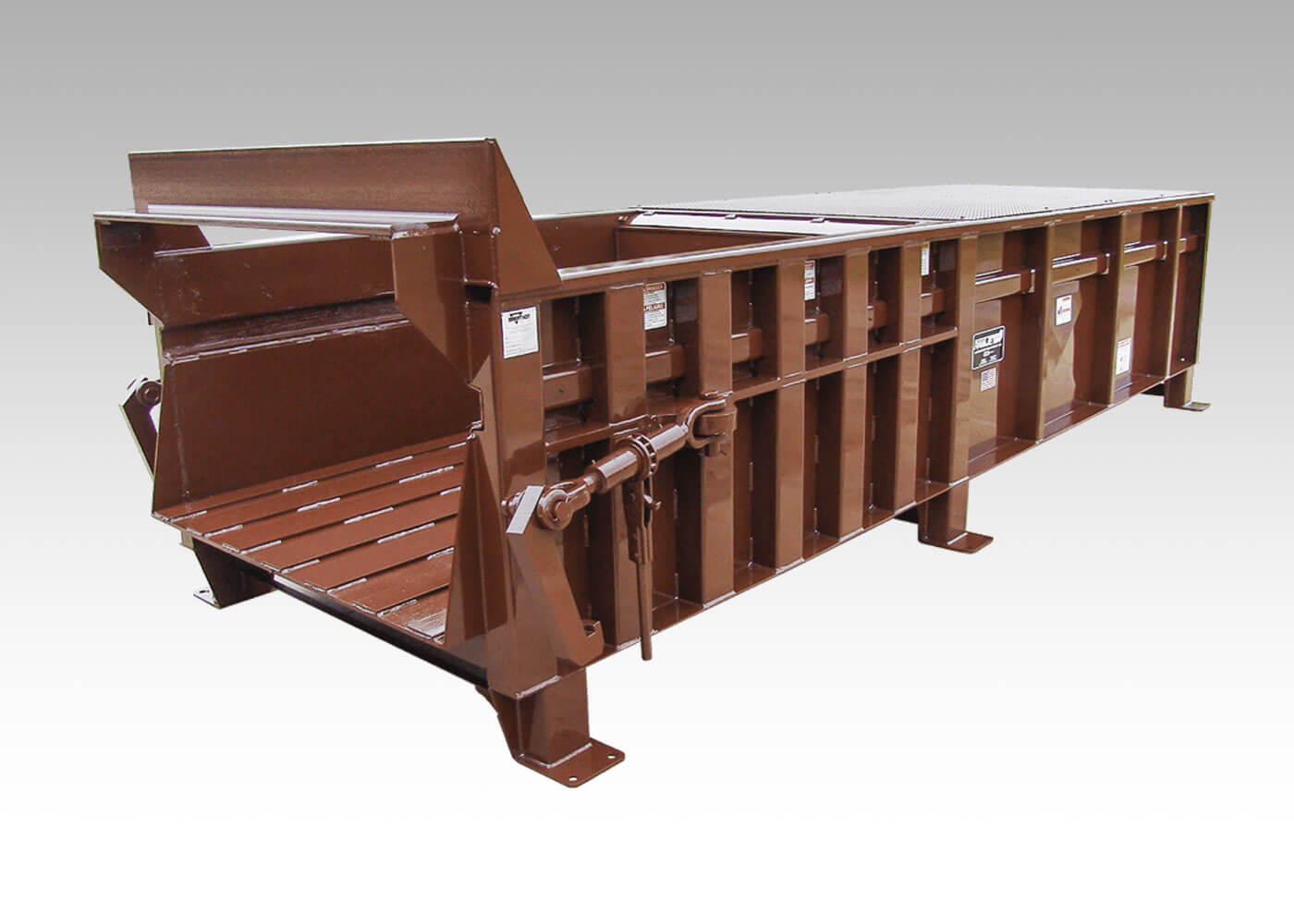

Marathon® RamJet® RJ-500 Stationary Trash compactors are the workhorses of the industry! Its proven capability assures reliability and top performance in heavy-duty commercial and industrial applications. The RamJet RJ-500 and RJ-500HD stationary compactors feature an extra large clear top opening that accepts large, bulky items with ease. Ruggedly built to meet the challenge, these units pack a powerful crushing force, and provide the performance and reliability that only Marathon can provide. RamJet RJ-500 and RJ-500HD stationary trash compactors feature an extra large clear top opening that accepts large, bulky items with ease. Ruggedly built to meet the challenge, these units pack a powerful crushing force, and provide the performance and reliability that only Marathon can provide.

Have Questions About The RJ-500 Series Trash Compactor?

Contact your local Marathon Compaction team today to request a complimentary site survey.

3 Yr. Structure | 2 Yr. Parts | 1 Yr. Labor

Introducing The Marathon Compaction Solutions Warranty

Marathon Equipment is pleased to announce the release of our updated Warranty Coverage program. This warranty will take effect and be applicable on all products sold on or after June 1, 2021. Please note: this warranty plan is not retroactive to products sold prior to June 1, 2021. Our existing Signature Series® Warranty, Compactor Warranty, and Auger Warranties have been combined into a new Compaction Solutions Warranty. The Compaction Solutions Warranty includes 3-year structural warranty, 2-year part warranty, and 1-year labor warranty.

Industrial-Grade Systems

The RJ-500 and RJ-500HD feature industrial-grade electrical and hydraulic systems that are UL and CUL Listed. This means trouble-free operation and top performance year after year. The Marathon side-mounted power unit combines the convenience and easy maintenance that comes with a remote power pack with the space savings and ease-of-installation of an integrated power pack.

Transfer Station Applications

The RJ-500 and RJ-500HD can be fitted with a variety of material-handling equipment such as chutes, hoppers, and dumpers. Cart dumpers can be custom built to your specifications to accommodate existing cart systems.

RJ-500 Series Compactor Features & Benefits

  • Designed to handle heavy-duty waste streams
  • Ideal for small transfer stations or municipal drop-off centers
  • Heavy-duty design and high-compaction force yield excellent volume reduction with MSW and light C&D (HD model only) waste streams
  • User-friendly 48″ deck height keeps installation costs down
  • Large 60″ wide by 82 1/2″ long clear top opening and 33″ deep charge box – a handy feature during peak loading times or when compacting bulky items.
  • Engineered for durability, the strength of the RJ-500 is right where it is needed. The 1/2″ charge box floor is reinforced with nine heavy-duty steel channels, 1/2″ plate ram face backed with 10″ plus 6″ structural channels and extra rugged reinforced sides.
  • Cylinder supports, a 3/4″ thick angle, 1″ thick plate breaker bar, 1/2″ ram top, and extra side supports are added for superior endurance.
  • Includes standard 3/8″ thick steel charge box liners and a 1/2″ thick abrasion-resistant steel plate on the charge box floor. Also features a standard 1/2″ AR400 tongue-and-groove floor.

SOURCEWELL REALLY SIMPLIFIES THE BIDDING PROCESS.

Purchasing Marathon trash compactors and balers through Sourcewell really simplifies the bidding process. All you have to do is get with a dealer, select your compactor or balers, we provide Sourcewell member pricing, and you simply issue a P.O.

Morgan ThomasMunicipal Equipment

RJ-500 Stationary Compactor Standard Features

Up to 76,900 lbs. of compaction force for commercial and industrial applications

Engineered for durability, the strength of the RJ-500 is right where it is needed. The 1/2″ charge box floor is reinforced with nine heavy-duty steel channels, 1/2″ plate ram face backed with 10″ plus 6″ structural channels and extra rugged reinforced sides.



Side-mounted power units offer convenience and ease-of-maintenance, eliminating the need to go inside the compactor for most repairs



The packing ram is supported by specially formulated cast iron shoes which ride on replaceable wear strips. This exclusive design protects the charge box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

The RJ-500 and RJ-500HD feature an advanced, simplified three-button control system. It is key-operated, fully automatic, and contained in a weatherproof NEMA 4 enclosure. Connected to the power pack with 13′ (3.96m) of conduit, the controls can be located for operator convenience.

Bayne Cart Lifter

AVAILABLE WITH BAYNE THINLINE CART LIFTER

Equipped with an integral cart lifter, the RJ-500 offers an economical and safety-conscious solution for a wide variety of waste material handling applications.

Bayne® Thinline® cart lifters work with standard two-bar roll-out carts and can lift up to 750 lbs. Lifters have a durable, powder-coated finish that can stand up to the elements.

PERFECT FOR TIPPER-SYSTEM APPLICATIONS

The RJ-500 is the perfect choice for applications requiring a tipper system. These tippers can extend the benefits of compaction to all areas of operation while keeping equipment investments to a minimum. Carts or containers can be located at individual waste generation sites within the operation, and then emptied into the compactor with the cart-tipper option.

SC2 Tipper System Applications

Compaction Options

The perfect configuration for your specific needs

Options are an essential part of virtually any compactor installation. Whether the options are for safety issues, convenience, operation efficiencies, or monitoring systems, waste-handling equipment can be fitted with a variety of customizable features to meet the demands of the application. Marathon compactor options include several categories such as: container-fullness measuring systems, usage-measurement systems, cycle-control systems, power pack options, odor-control systems, and steel options.

View Compactor Options
