Trash Commander tank Compact stationary trash Compactors
Marathon® Trash Commander® TANK® Series Compact Stationary Trash Compactors are short, yet powerful compaction machines. Available in two capacities, the compact size of the TANK stationary compactor makes it ideal for dock applications. It takes up to 35% less space than other compactors of similar capacity, and the two crossed-cylinders produce powerful compaction, equal to larger-body compactors.
Each model Trash Commander TANK stationary compactor is available in two compaction forces with 10 hp or 15 hp power units.
Have Questions About The Trash Commander Tank Trash Compactor?
Contact your local Marathon Compaction team today to request a complimentary site survey.
3 Yr. Structure | 2 Yr. Parts | 1 Yr. Labor
Introducing The Marathon Compaction Solutions Warranty
Marathon Equipment is pleased to announce the release of our updated Warranty Coverage program. This warranty will take effect and be applicable on all products sold on or after June 1, 2021. Please note: this warranty plan is not retroactive to products sold prior to June 1, 2021. Our existing Signature Series® Warranty, Compactor Warranty, and Auger Warranties have been combined into a new Compaction Solutions Warranty. The Compaction Solutions Warranty includes 3-year structural warranty, 2-year part warranty, and 1-year labor warranty.TC-220T AND TC-300T TANK Stationary Compactors

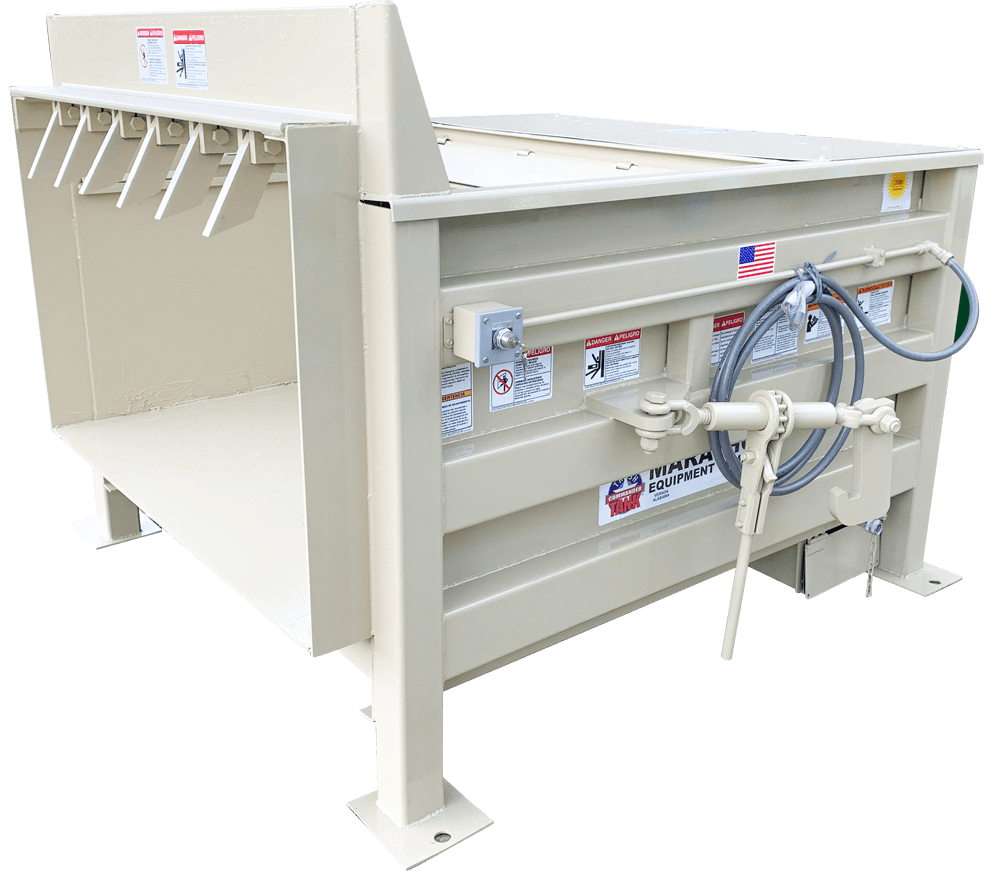

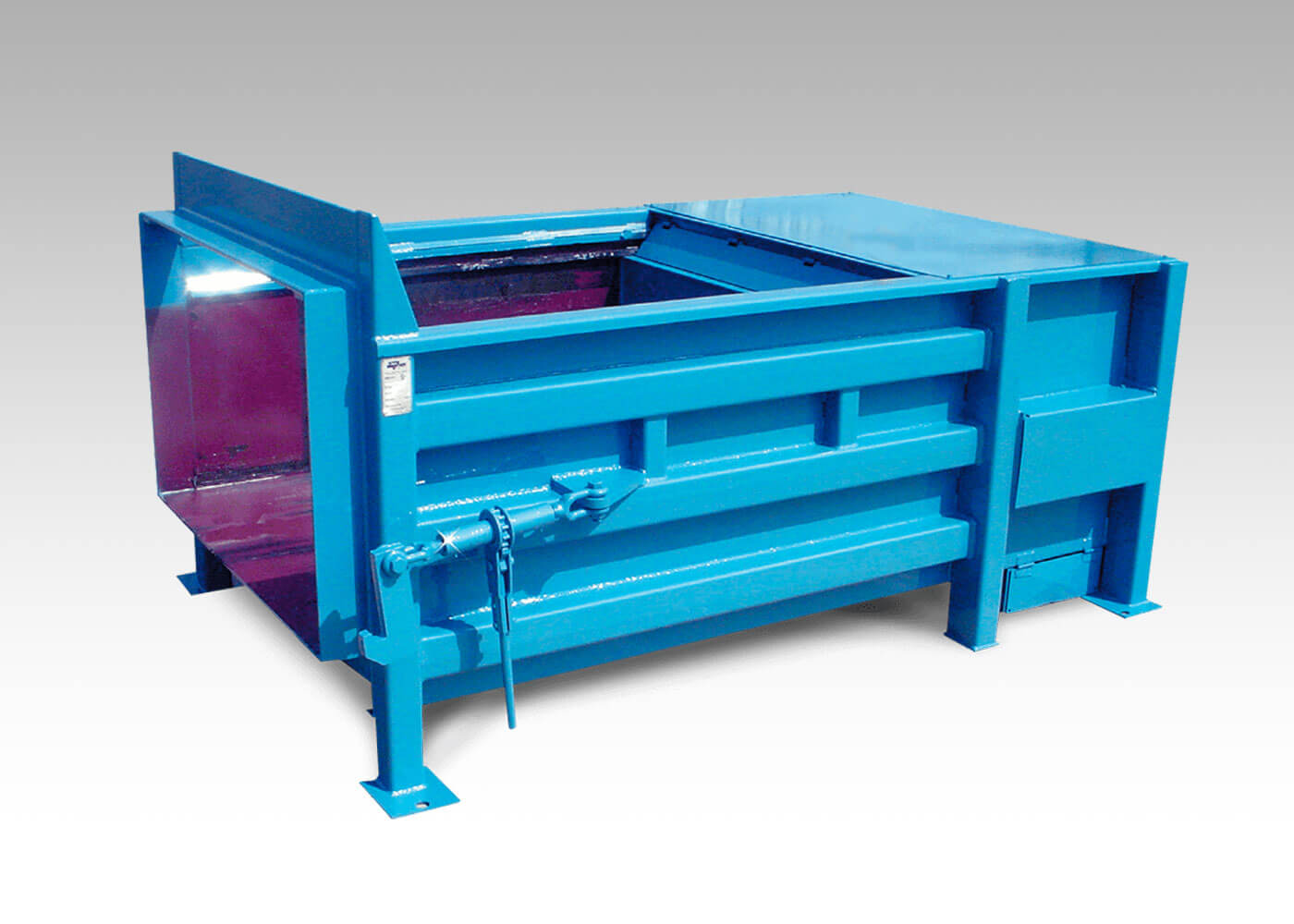

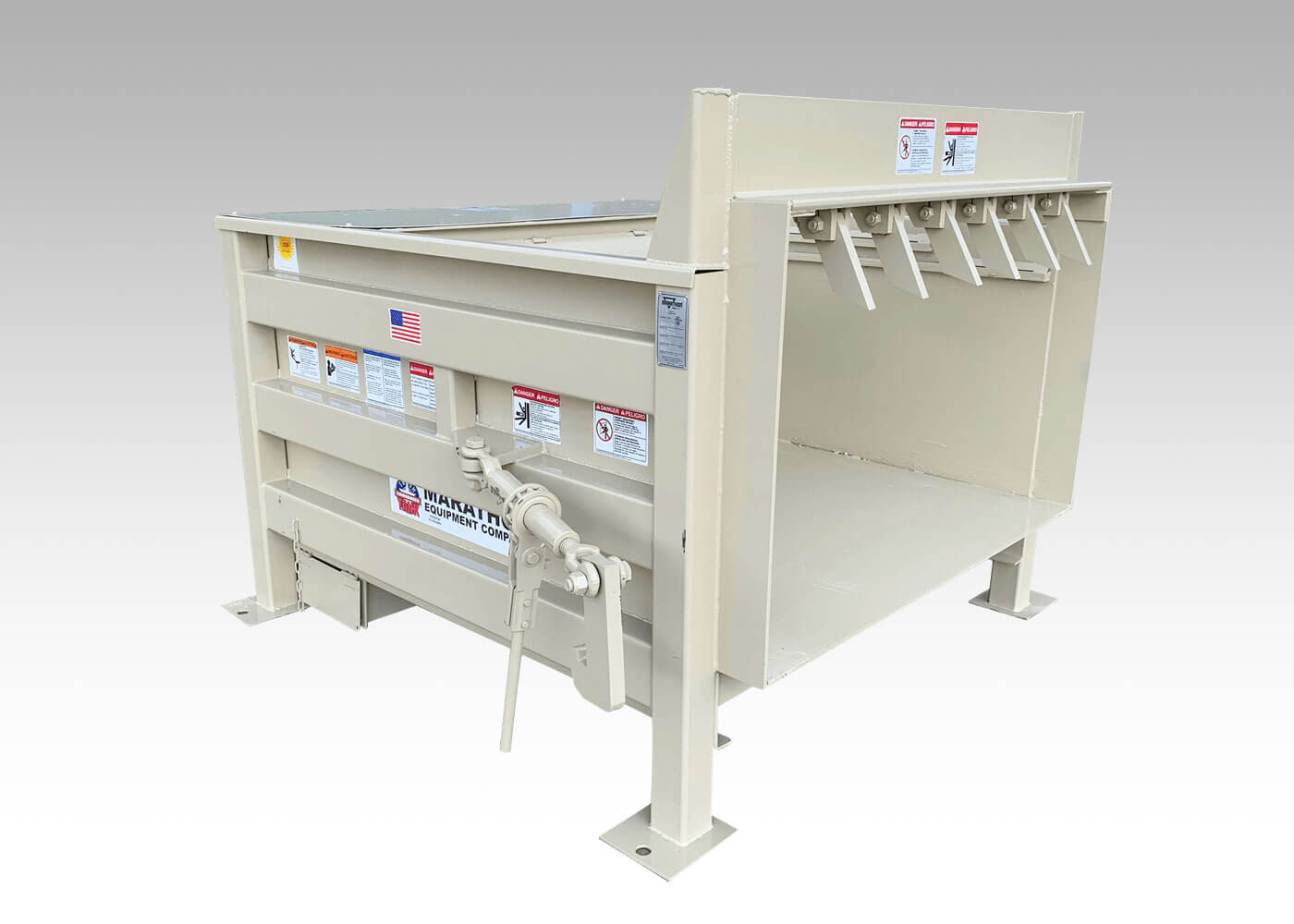

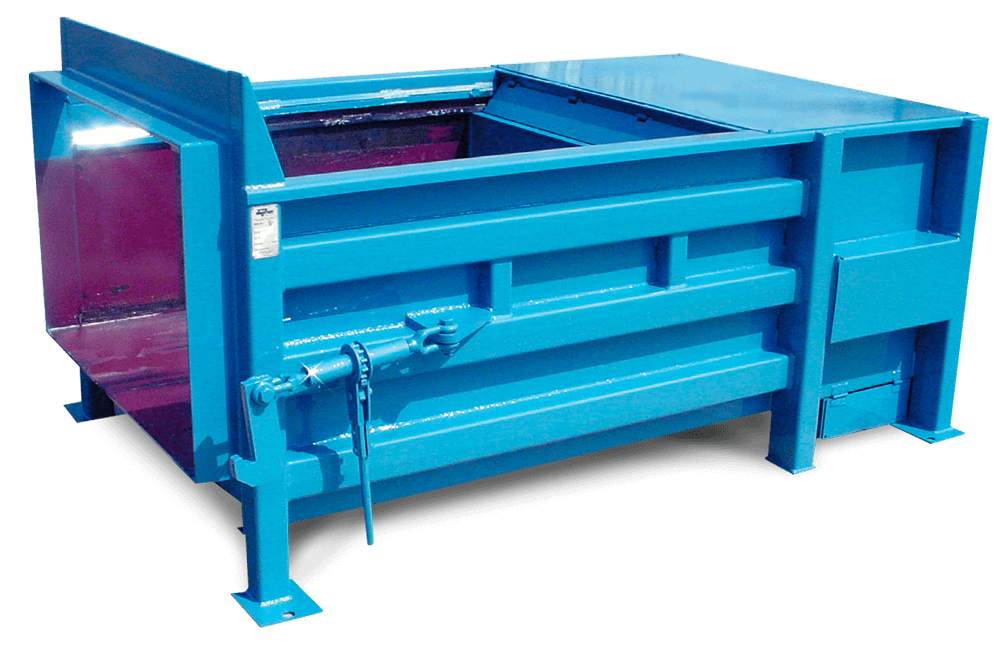

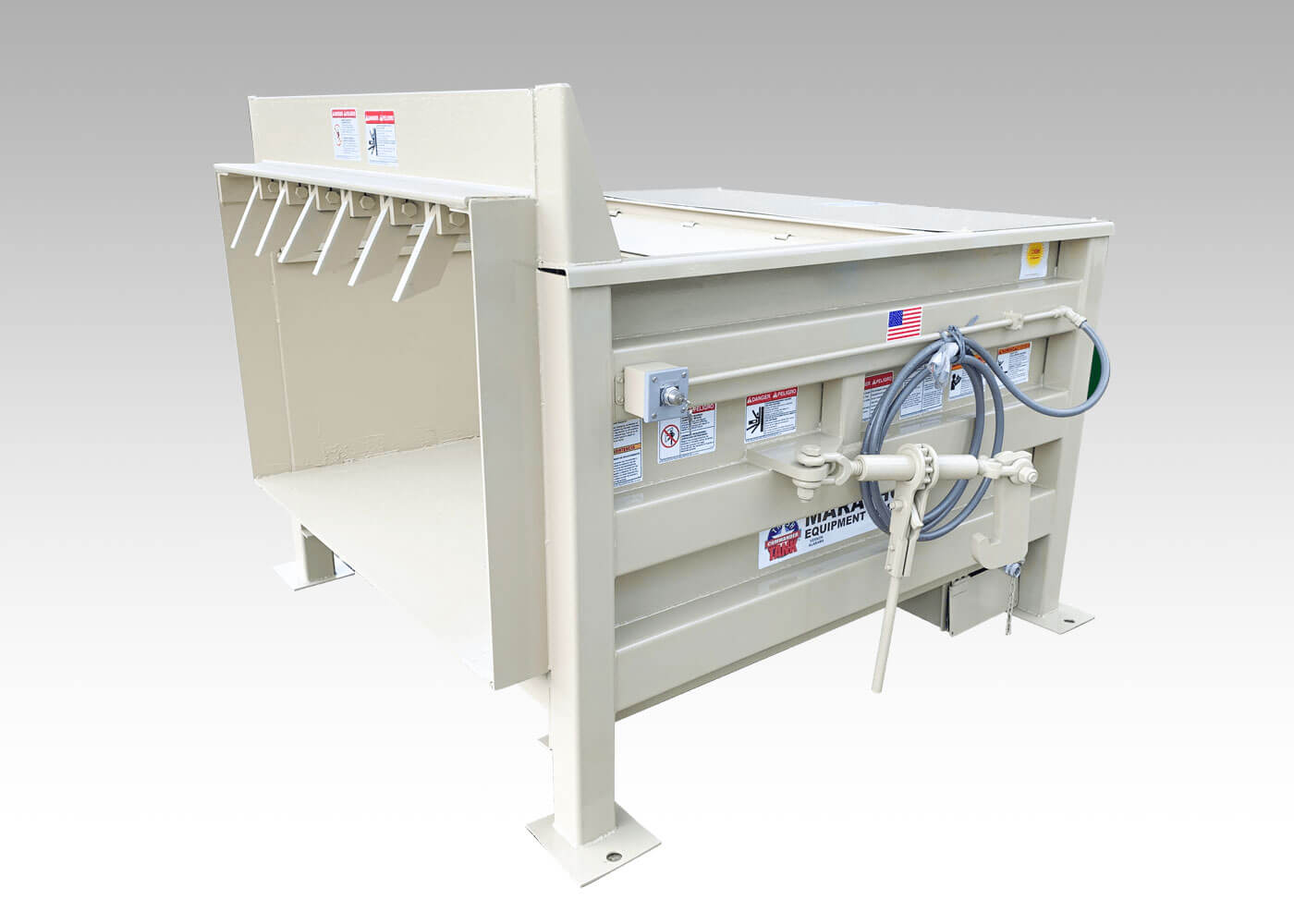

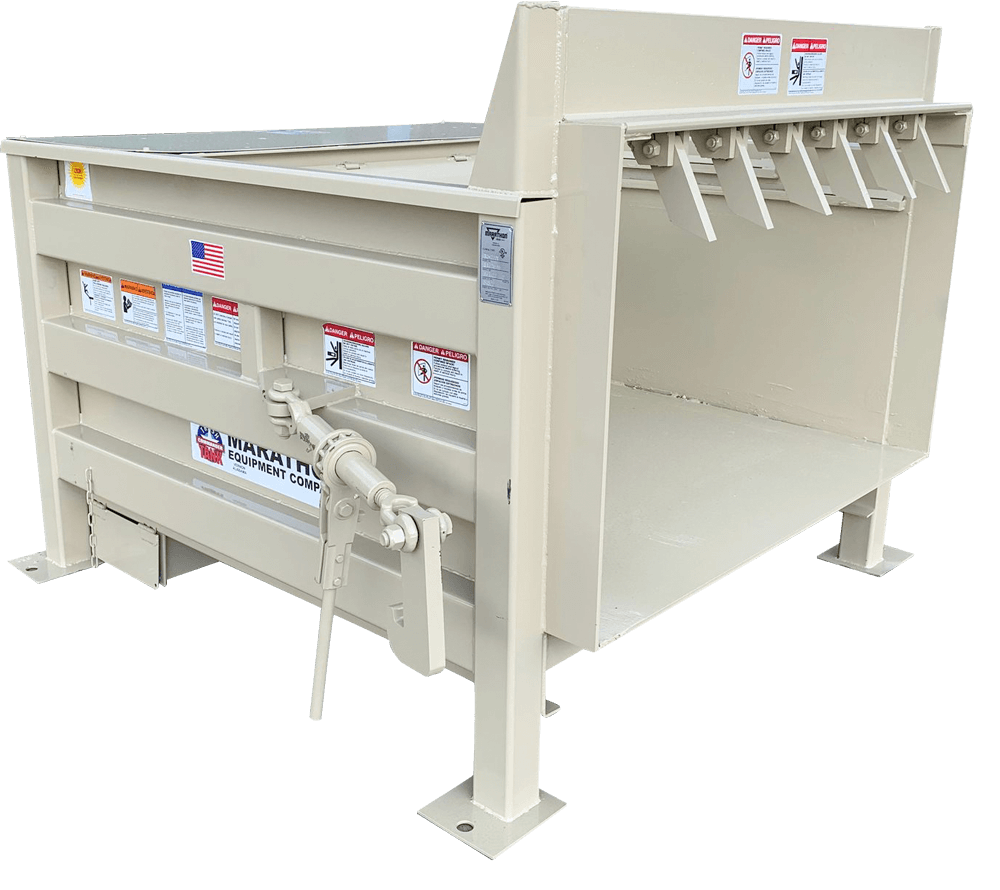

The TC-300T is the latest in the Trash Commander TANK series of short, yet powerful stationary compactors. With crossed-cylinder technology, it is the most exciting development in the waste compaction industry. The three cubic-yard capacity compaction chamber is incorporated into a body that is only 9′ 4 1⁄2″ long. This enables greater throughput capacity in applications where space is limited, such as retail outlets, department stores, malls, large restaurants, grocery stores, and shopping centers. The large clear-top opening accommodates large bulky items and delivers greater throughput capacity. The TC-300T TANK is ideal for dock-feed applications. With our standard four-sided, rear-feed hopper, there is no need for special walk-on tops or guard rails in many applications. A three-yard compactor that can fit into the space of a conventional two-yard unit.
The compact but powerful TC-220T was designed based on user suggestions. The TANK compactor maneuvers well in those applications where space is limited but demand for maximum compaction performance is not.
Compact Size. Big Performance.

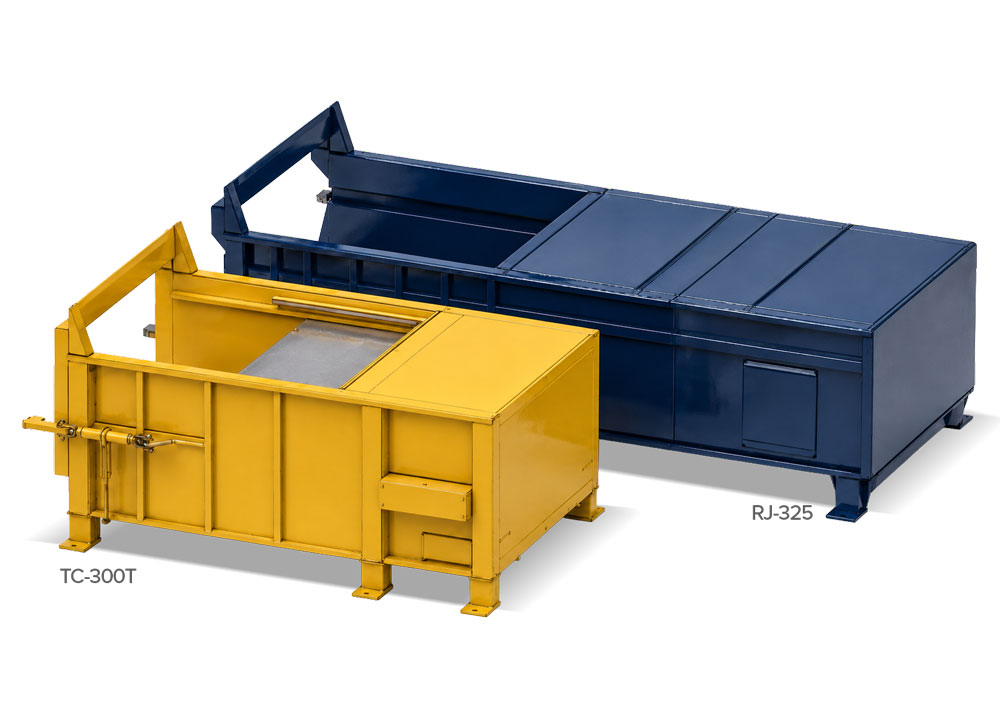

The TC-300T TANK (foreground) compared to a standard Marathon 3 cubic-yd. compactor shows the difference in overall length — yet the clear-top opening of the TANK compactor is the same as the larger RJ-325. The picture also illustrates that if the TANK compactor is fitted with our standard four-sided, rear-feed hopper, there is no need for tread plates or guard rails in many applications.
Trash Commander TANK Stationary Compactor Features & Benefits
- The remote power unit has the Marathon Cycon Life-Xtender® cyclic control system, which eliminates limit and pressure switches, produces superior payloads, and reduces trash-removal cost.
- A tough heavy-duty power frame includes a 1/2″ thick compaction chamber floor and ram-face plate, and liberal use of heavy hot-rolled channels, angles, and bars. The breaker bar is a 6″ x 8″ x 1″ thick solid piece of hot-rolled angle steel.
- The TC-300T is the shortest three cubic-yard compactor in the industry.
- Superior clear-top openings in a small footprint.
TRASH COMMANDER TANK Stationary Compactor Features
A tough heavy-duty power frame includes a 1/2″ thick compaction chamber floor and ram-face plate, and liberal use of heavy hot-rolled channels, angles, and bars. The breaker bar is a 6″ x 8″ x 1″ thick solid piece of hot-rolled angle steel.
Separate from the compactor/container, the Marathon Remote Power Pack remains free of damage caused while hauling to and from disposal sites, and stays free of problems caused by landfill dust. There are no electrical connections to make or break, and two simple-to-use, hydraulic quick disconnects couple the power unit to the packing head. All Marathon Remote Power Packs are built in-house to our quality standards, and each unit must pass a series of stringent tests before it can be shipped with the selected compactor.
Its compact length enables it to fit snugly against any structure, perfect for tight areas. The compact size and 48″ loading height eliminate the need for platforms, hand and toe rails, and tread-plate tops in many applications.
An optional doghouse offers a totally enclosed charge box with heavy-duty latches.
CYCON LIFE-XTENDER CYCLIC CONTROL SYSTEM
Standard on all Trash Commander TANK Compactors:
- Reliable PLC controls eliminates the need for limit switches
- The Cycon Life-Xtender no-shock cycle control extends cylinder and hose wear life
- Automatic “container full assurance system” — the ram dwells against the load at full pressure, resulting in better compaction
- Smoother running, quieter operation
- Advanced hydraulic design enables the system to operate at minimum pressure levels until the need for more pressure is automatically sensed
- More accurate Advanced Warning or Container-Full options
- Superior cold-weather performance
AVAILABLE WITH BAYNE THINLINE CART LIFTER
Equipped with an integral cart lifter, the Trash Commander TANK offers an economical and safety-conscious solution for a wide variety of waste material handling applications.
Bayne® Thinline® cart lifters work with standard two-bar roll-out carts and can lift up to 750 lbs. Lifters have a durable, powder-coated finish that can stand up to the elements.
PERFECT FOR TIPPER-SYSTEM APPLICATIONS
The Trash Commander TANK is the perfect choice for applications requiring a tipper system. These tippers can extend the benefits of compaction to all areas of operation while keeping equipment investments to a minimum. Carts or containers can be located at individual waste generation sites within the operation, and then emptied into the compactor with the cart-tipper option.
Compaction Options
The perfect configuration for your specific needs
Options are an essential part of virtually any compactor installation. Whether the options are for safety issues, convenience, operation efficiencies, or monitoring systems, waste-handling equipment can be fitted with a variety of customizable features to meet the demands of the application. Marathon compactor options include several categories such as: container-fullness measuring systems, usage-measurement systems, cycle-control systems, power pack options, odor-control systems, and steel options.
View Compactor Options
Marathon Trash Commander Stationary Compactor Brochure
