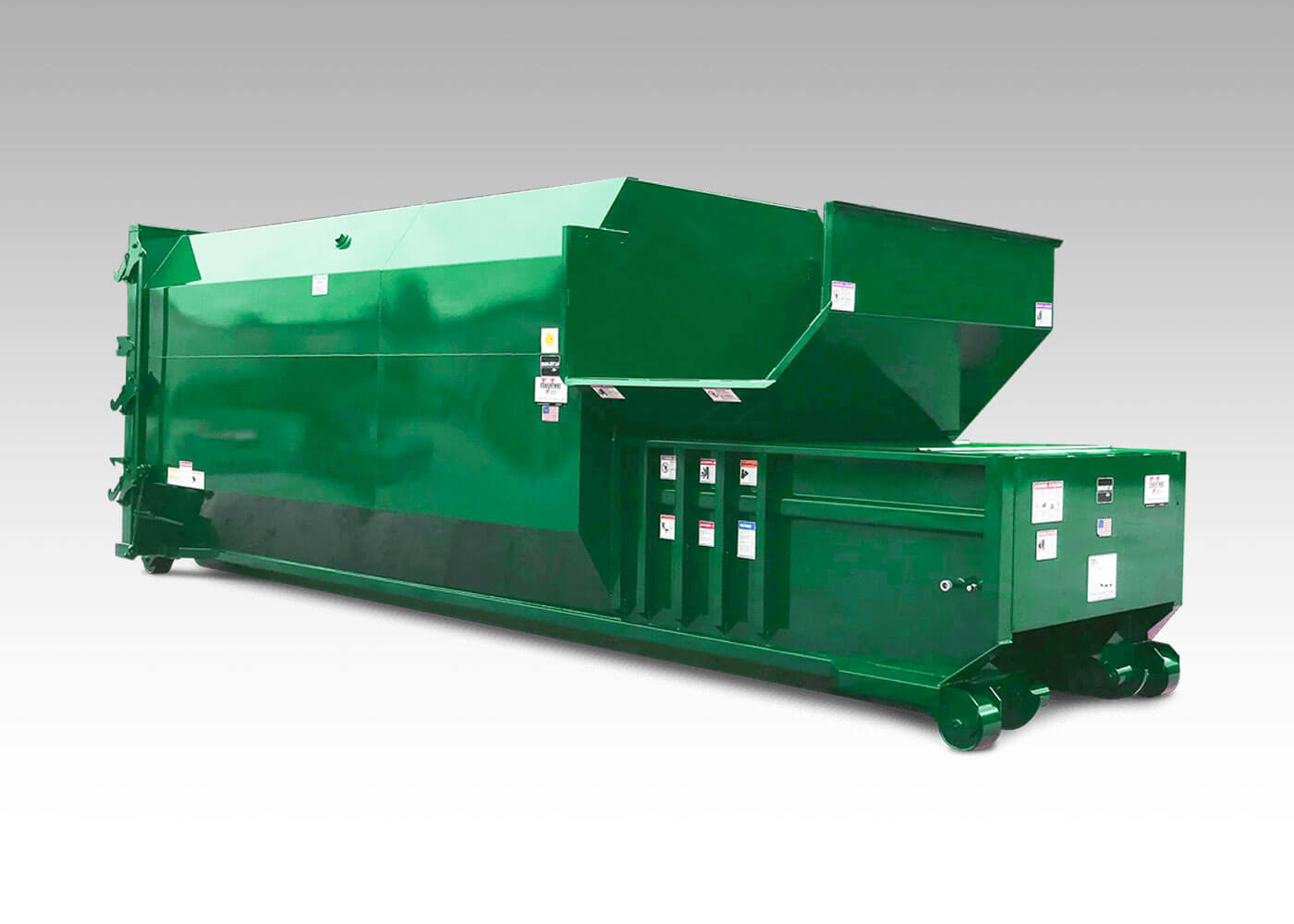

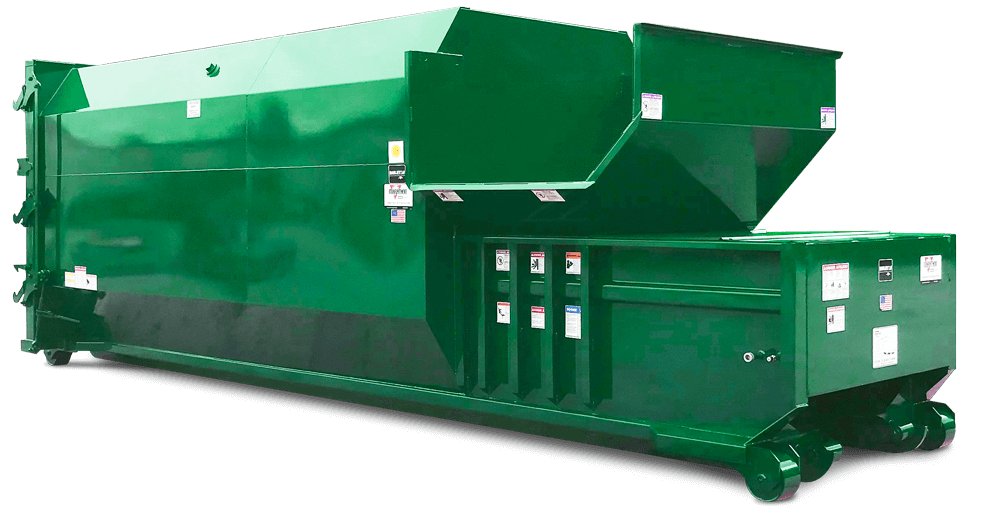

RJ-100SC Self-Contained Trash Compactor With Container

Marathon® RJ-100SC Self-Contained Trash Compactors with container makes handling wet or dry waste incredibly simple. The RJ-100SC self-contained compactor is easy to load from both the ground and dock levels. In addition, a compaction hopper can be used to double or triple the loading capacity. Waste can be fed continuously while the unit is cycling.

With over 18 tons of crushing power, the RJ-100SC self-contained trash compactor will reduce refuse to a fraction of its original size. The universal double-end pickup and dock-friendly design make the RJ-100SC compactor ideal for dock-fed applications. Other features include fire hose connections on each unit, hinge grease fittings, plus ground and guide rollers.

Have Questions About The RJ-100SC Trash Compactor?

Contact your local Marathon® Compaction team today to request a complimentary site survey.

3 Yr. Structure | 2 Yr. Parts | 1 Yr. Labor

Introducing The Marathon® Compaction Solutions Warranty

Marathon Equipment is pleased to announce the release of our updated Warranty Coverage program. This warranty will take effect and be applicable on all products sold on or after June 1, 2021. Please note: this warranty plan is not retroactive to products sold prior to June 1, 2021. Our existing Signature Series® Warranty, Compactor Warranty, and Auger Warranties have been combined into a new Compaction Solutions Warranty. The Compaction Solutions Warranty includes 3-year structural warranty, 2-year part warranty, and 1-year labor warranty.

RJ-100SC Features & Benefits

  • Exclusive 35″ x 60″ feed opening to handle large, bulky items
  • Continuous feeding capability — even while the compactor is operating
  • Adaptable to special loading systems such as large-capacity hoppers, security chutes, total enclosures, and more
  • Odor and pest control via the Marathon Ozone Odor Control option
  • Easy loading from either ground or dock level
  • Over 18 tons of crushing force to reduce refuse to a fraction of its former size, saving valuable space and reducing landfill trips
  • Fire hose connection provided on each unit
  • Factory testing to ensure leak-proof construction
  • Large 35″ x 60″ Feed Opening
  • Full Door Seal with P-Seal
  • Bubble Gate with Auto Relatch and Double-Hinge Door
  • Qwik Clean® Tank
  • Cycon Life-Xtender Cyclic Control

rj-100sc Self-Contained Compactor standard Features

Continuous feeding capability — even while the compactor is operating

Adaptable to special loading systems such as large-capacity hoppers, security chutes, total enclosures, and more

Odor and pest control via the Marathon Ozone Odor Control option

Easy loading from either ground or dock level

Over 18 tons of crushing force to reduce refuse to a fraction of its former size, saving valuable space and reducing landfill trips

Factory testing to ensure leak-proof construction

Exclusive 35″ x 60″ feed opening to handle large, bulky items

All Marathon Remote Power Packs are built in-house to our quality standards and each unit must pass a series of stringent tests before it can be shipped with the selected compactor.

The Qwik Clean tank feature, standard on all RJ-100SC compactors, funnels any liquid seepage which can occur during compaction into an enclosed area underneath the charge box floor. The liquid is automatically discharged at the disposal site, in effect flushing the container and the area behind the ram. The 12″ high, up to 750-gallon capacity sump area is designed to provide easier hook access for roll-off drivers.

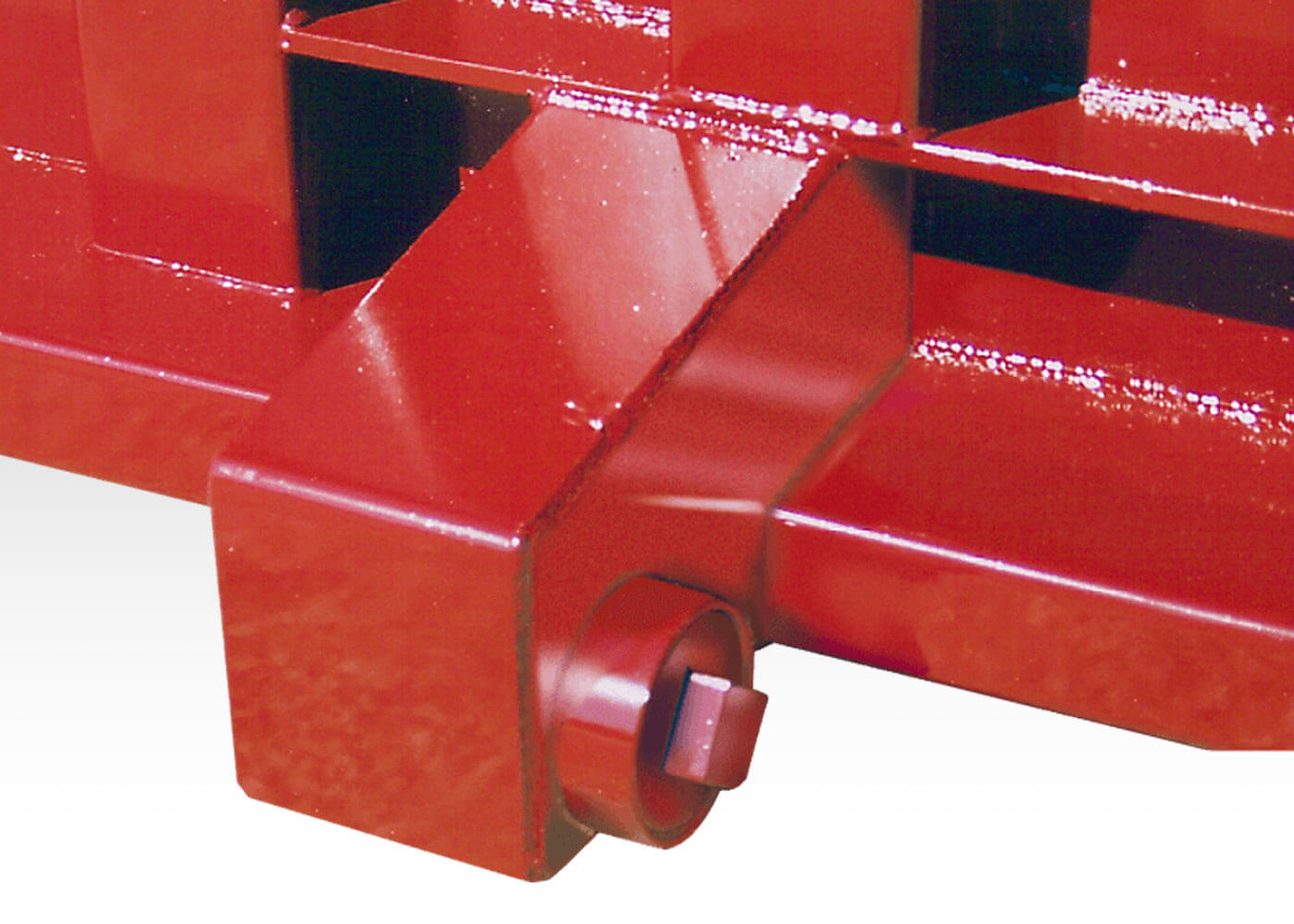

The packing ram is supported by specially formulated cast-iron shoes which ride on replaceable wear strips. This exclusive design protects the charge-box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

P-Seal Watertight Closure

The P-shaped Door Seal is specially designed for portable compaction containers to provide a superior watertight closure. The mounting is engineered for quick and easy installation when replacement is necessary, requiring no field fitting, cutting, or welding.

Double-Hinge with Bronze Bushing

Every RJ-100SC is tested for watertightness before leaving the factory. Liquid retention is ensured by the incredible Double-Hinge. It creates uniform seal compression while eliminating the seal “scrubbing” and damage so often encountered with competitive designs. The Double-Hinge also saves expensive driver and truck time because only one easy-to-operate ratchet is required to make it work.

BUBBLE GATE

The innovative “Bubble Gate” adds a full cubic yard to container capacity. Superior compaction ratios result from its special curved shape. These two unique benefits reduce costs of disposal.

Auto relatch

The ultimate in latch systems, the Marathon “Auto Relatch” eliminates the need to hold the door while operating the latch ratchet. This design enables the operator to use both hands on the ratchet.

Ram Guide System

The packing ram is supported by specially formulated cast-iron shoes which ride on replaceable wear strips. This exclusive design protects the charge-box floor from the full force of the packing ram, extending its life and dramatically reducing compaction-robbing friction.

Cycon Life Extender

CYCON LIFE-XTENDER® CYCLIC CONTROL SYSTEM

Standard on all RJ-100SC Compactors

  • Reliable, solid-state circuitry eliminates all pressure and limit switches
  • The Cycon Life-Xtender no shock cycle control extends cylinder and hose wear life
  • Automatic “container full assurance system” — the ram dwells against the load at full pressure, resulting in better compaction
  • Smoother running, quieter operation
  • Advanced hydraulic design enables the system to operate at minimum pressure levels until the need for more pressure is automatically sensed
  • More accurate Advanced Warning or Container Full options
  • Dramatically improved coldweather performance

RJ-100SC Self-Contained Compactor Options

Optional Doghouse

An optional doghouse offers a totally enclosed charge box with heavy-duty latches.

Qwik Clean® Door

The Qwik Clean door on the packer end makes cleaning out behind the ram in cylinder area a snap. The door has miniature hinges, a door seal, and a ratchet binder

StreamLine® Option

The StreamLine option enables excess liquid to be drained from the container, reducing net payload weight and significantly reducing hauling costs. Liquid is routed to four interconnected 4″ drain outlets located at each corner of the StreamLine unit. Connection can be made to a hose, piping, or a pump.

RamJet

Our RamJet®  RJ-100SC units are state-of-the-art in roll-off self-contained compactors, featuring large feed openings and expanded container storage capacity. They are designed to optimize safety for workers, store and transport your waste, prevent contamination of public areas in accordance with public health department requirements, improve working conditions for your employees, and reduce disposal costs.

Bayne Cart Lifter

AVAILABLE WITH BAYNE THINLINE® CART LIFTER

Equipped with an integral cart lifter, the RJ-100SC offers an economical and safety-conscious solution for a wide variety of waste material handling applications.

Bayne Thinline cart lifters work with standard two-bar roll-out carts and can lift up to 750 lbs. Lifters have a durable, powder-coated finish that can stand up to the elements.

PERFECT FOR TIPPER-SYSTEM APPLICATIONS

The RJ-100SC is the perfect choice for applications requiring a tipper system. These tippers can extend the benefits of compaction to all areas of operation while keeping equipment investments to a minimum. Carts or containers can be located at individual waste generation sites within the operation, and then emptied into the compactor with the cart-tipper option.

SC2 Tipper System Applications

Compaction Options

The perfect configuration for your specific needs

Options are an essential part of virtually any compactor installation. Whether the options are for safety issues, convenience, operation efficiencies, or monitoring systems, waste-handling equipment can be fitted with a variety of customizable features to meet the demands of the application. Marathon compactor options include several categories such as: container-fullness measuring systems, usage-measurement systems, cycle-control systems, power pack options, odor-control systems, and steel options. View Compactor Options
