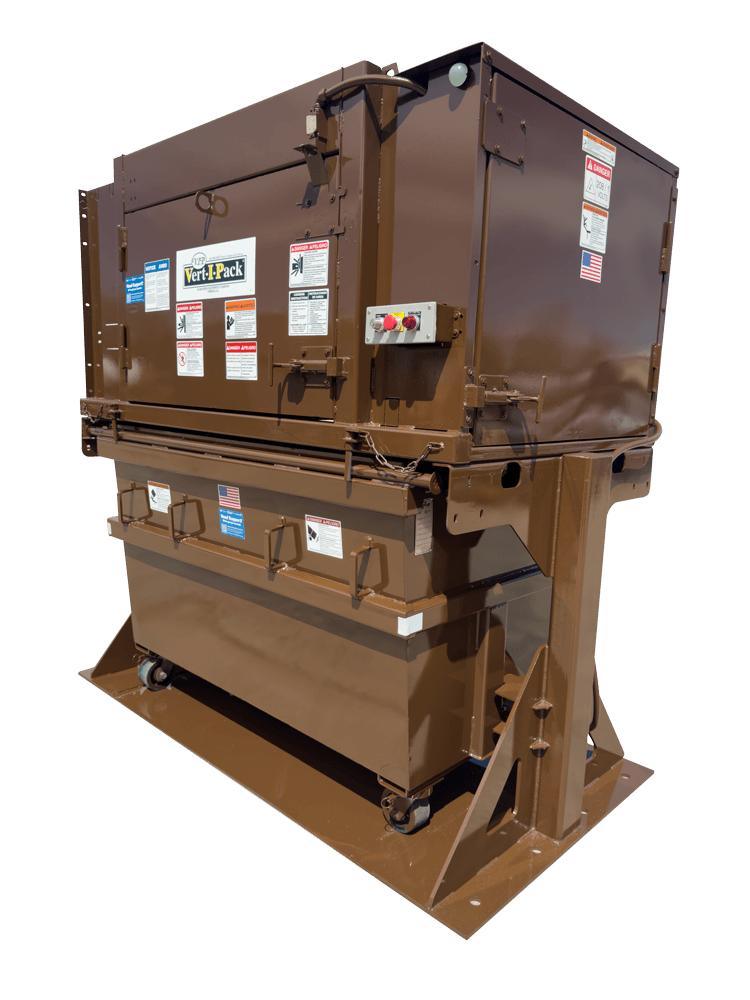

Untouchable VIP & V.I.P. FL/3 Front/Rear Load Trash Compactor
For Use With Front Load or Rear Load Garbage Trucks
The Marathon® Untouchable VIP® trash compactor for frontload and rearload garbage trucks, was developed from a growing need for superior compaction in a small footprint. Originally developed for the narrow alleyways of Chicago, it’s the perfect trash compactor for areas with limited space where compaction is necessary.
- Use for front- or rear-load garbage truck applications
- Extra-low feed heights
- Rigid anchoring platform
- Triple-interlock safety system
Have Questions About The UNTOUCHABLE VIP or VIP FL/3 Trash Compactor?
Contact your local Marathon Compaction team today to request a complimentary site survey.
3 Yr. Structure | 2 Yr. Parts | 1 Yr. Labor
Introducing The Marathon Compaction Solutions Warranty
Marathon Equipment is pleased to announce the release of our updated Warranty Coverage program. This warranty will take effect and be applicable on all products sold on or after June 1, 2021. Please note: this warranty plan is not retroactive to products sold prior to June 1, 2021. Our existing Signature Series® Warranty, Compactor Warranty, and Auger Warranties have been combined into a new Compaction Solutions Warranty. The Compaction Solutions Warranty includes 3-year structural warranty, 2-year part warranty, and 1-year labor warranty.Untouchable VIP and V.I.P. FL/3 Front/Rear Load Compactor Features & Benefits
- The Untouchable VIP is a real space saver – with more than 13 tons of crushing force, it reduces the contents of many open containers into one Vert-I-Pack® container. This saves your hauler time because there is only one container to pick up.
- With improved housekeeping, the Untouchable VIP keeps liquids off the ground, which helps control odor and rodents. It also prevents weekend overflow, which eliminates the need to schedule those expensive weekend pickups.
- The Untouchable VIP is designed with the user in mind and has no heavy or clumsy lids to open and close.
- The Untouchable VIP controls employee pilferage – optional security kit (rear feed units only) enables the unit to be fed from inside the building, eliminating the temptation of employees to put merchandise into a box, stash the box in the trash container, and return later to retrieve the merchandise.
- The V.I.P. FL/3 self-contained compactor has many of the same features, except the power unit is accessed via the rear of the machine.
- Containers With Casters – The Untouchable VIP container features heavy-duty casters, which allow it to be rolled to an area that is accessible by the waste collection vehicle.

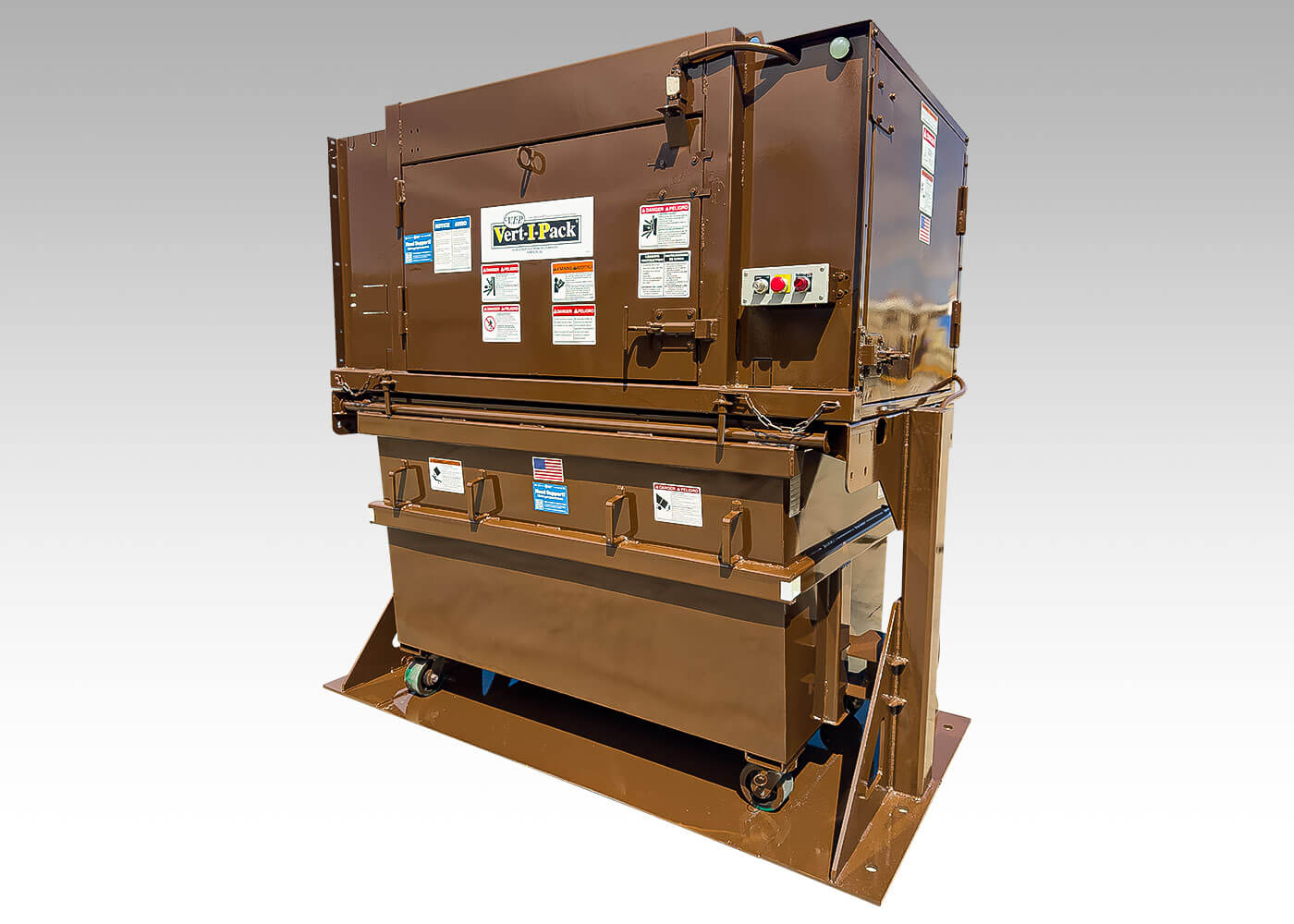

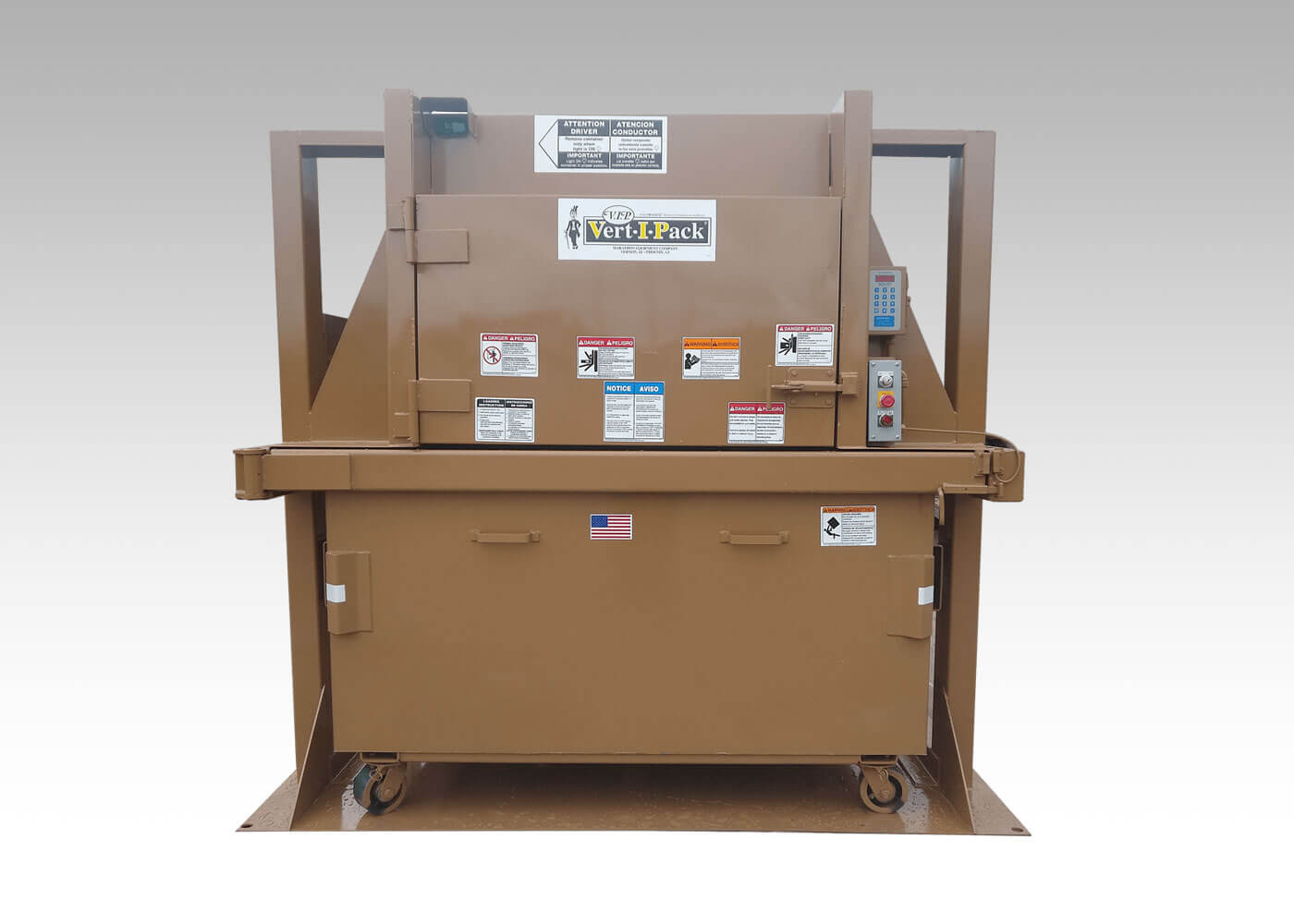

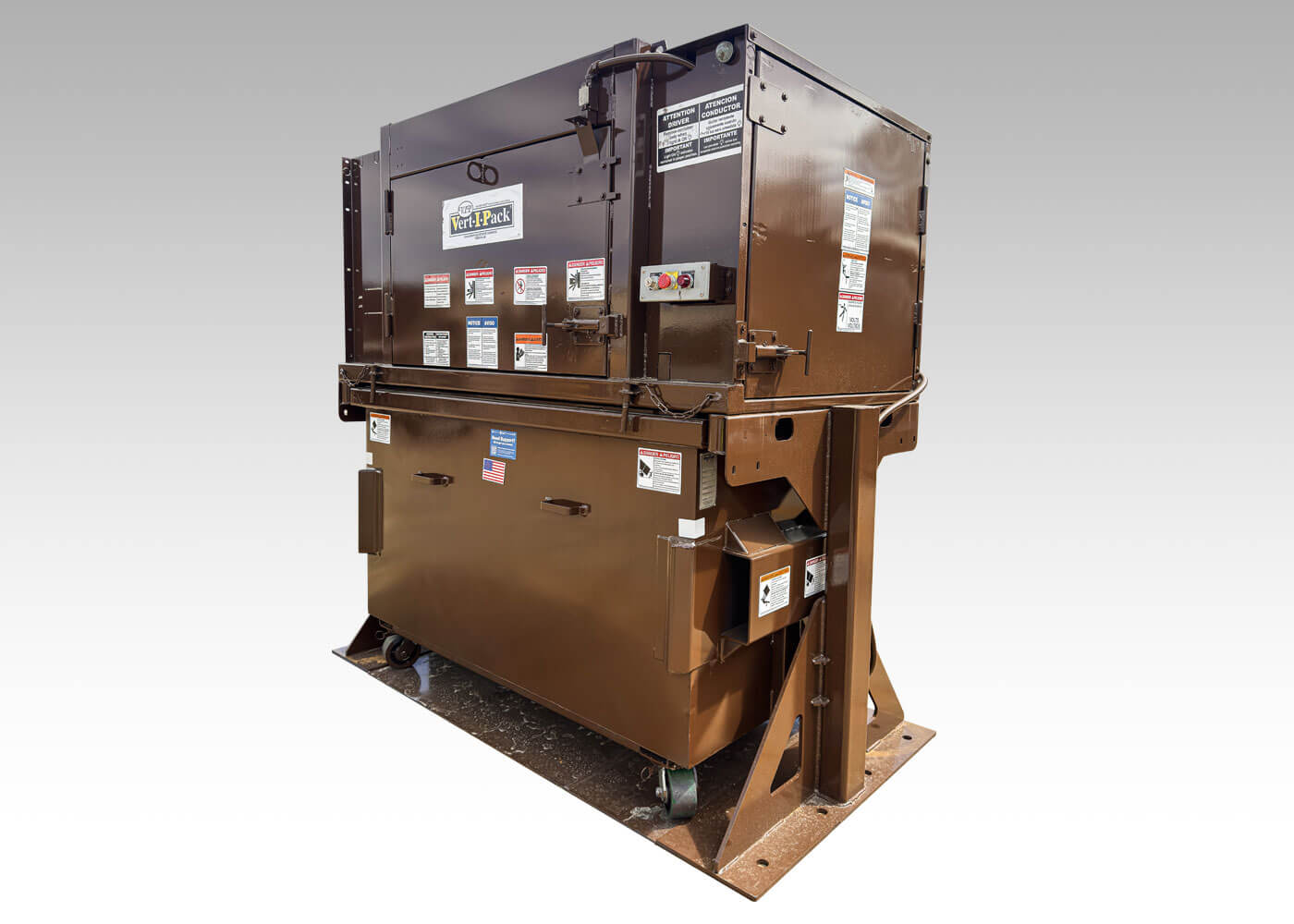

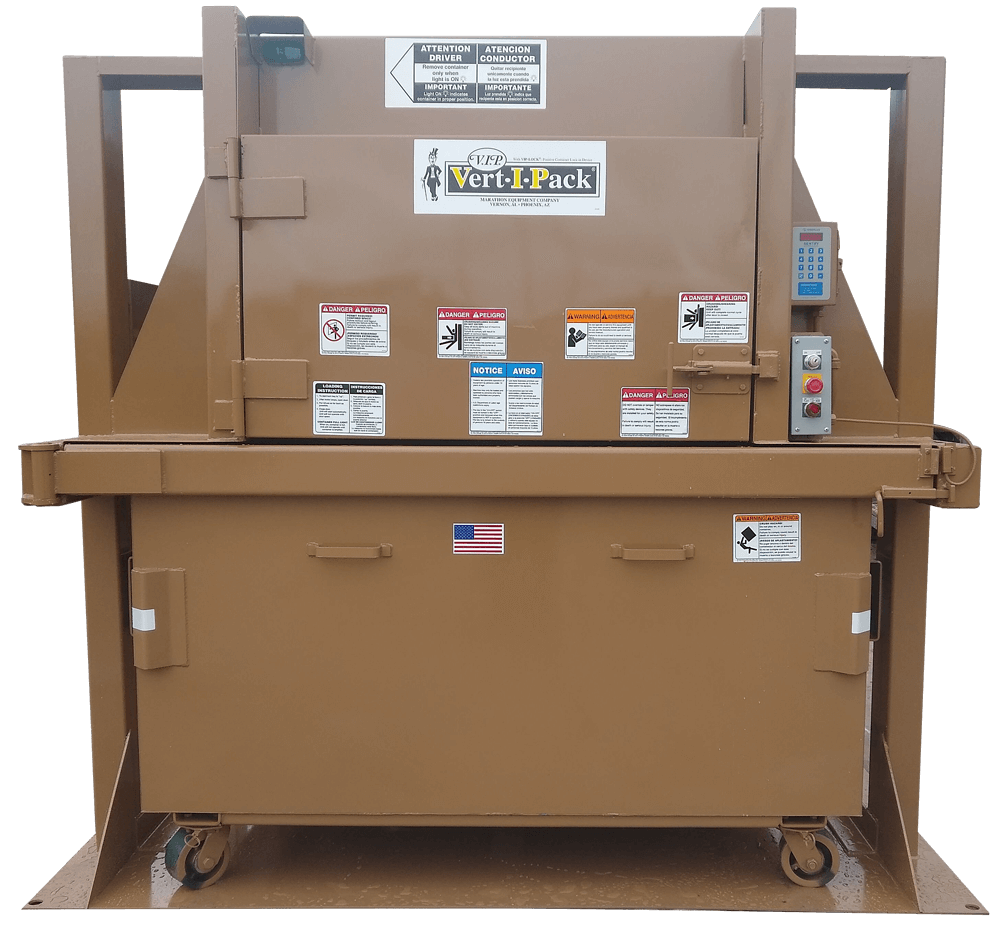

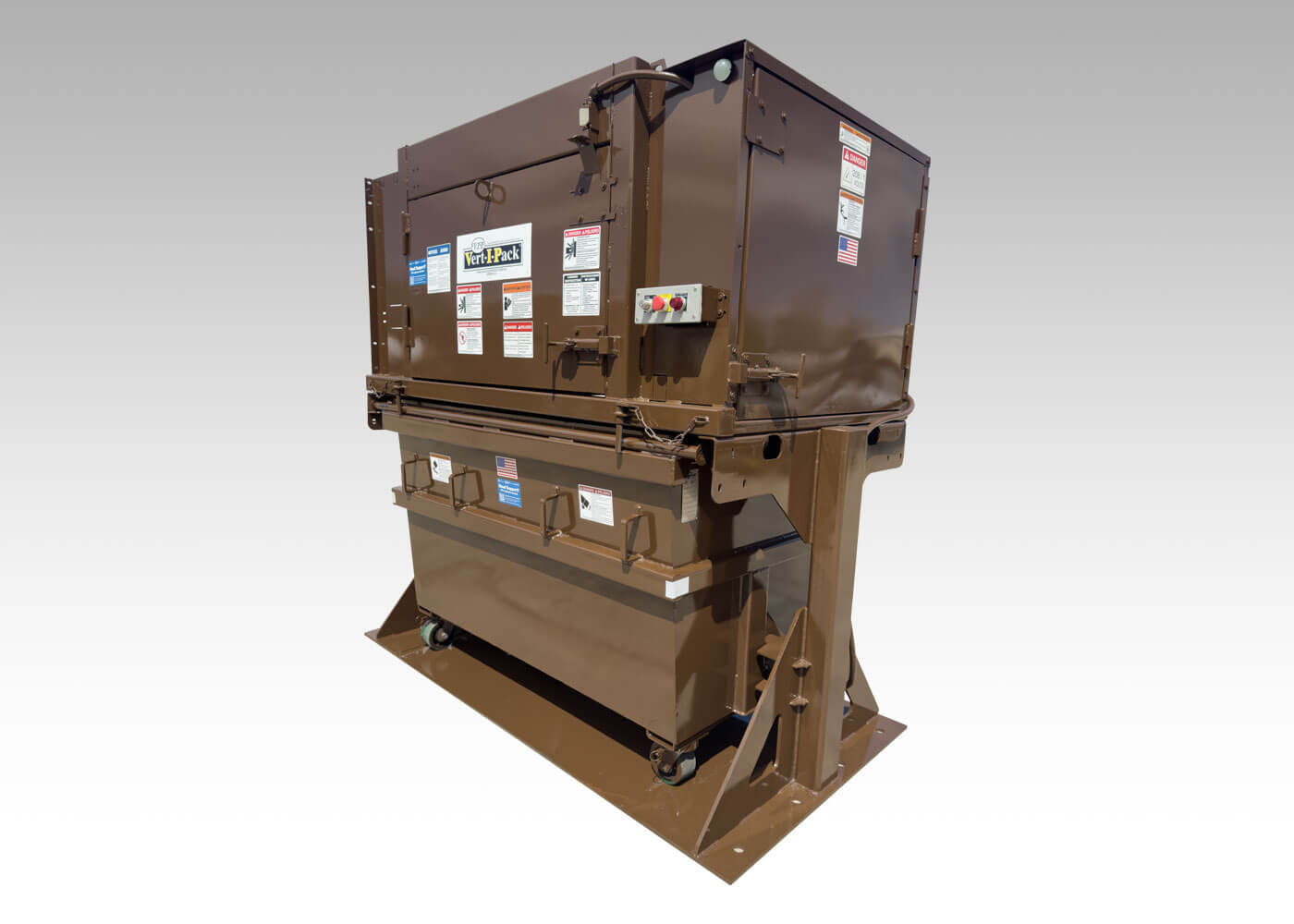

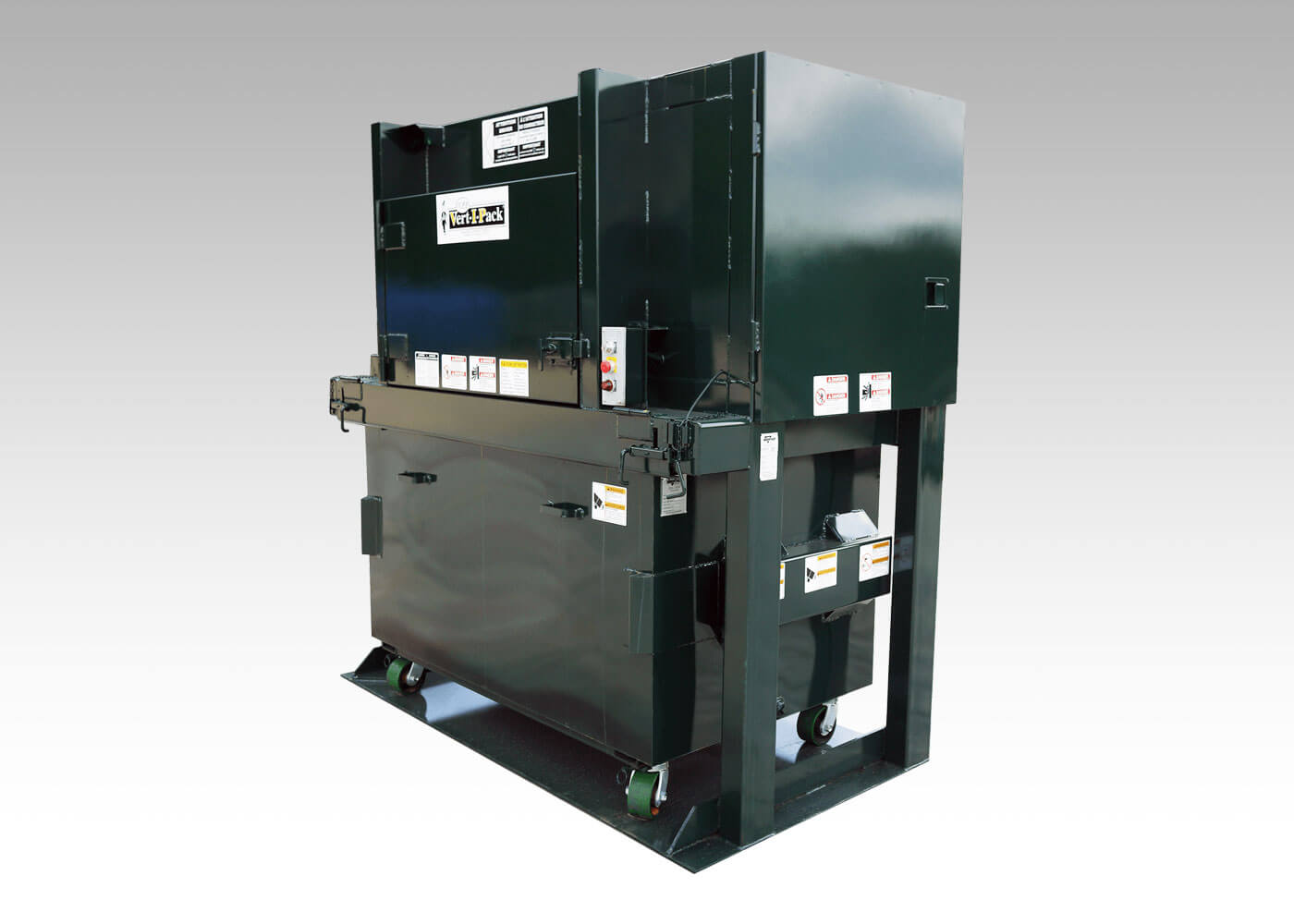

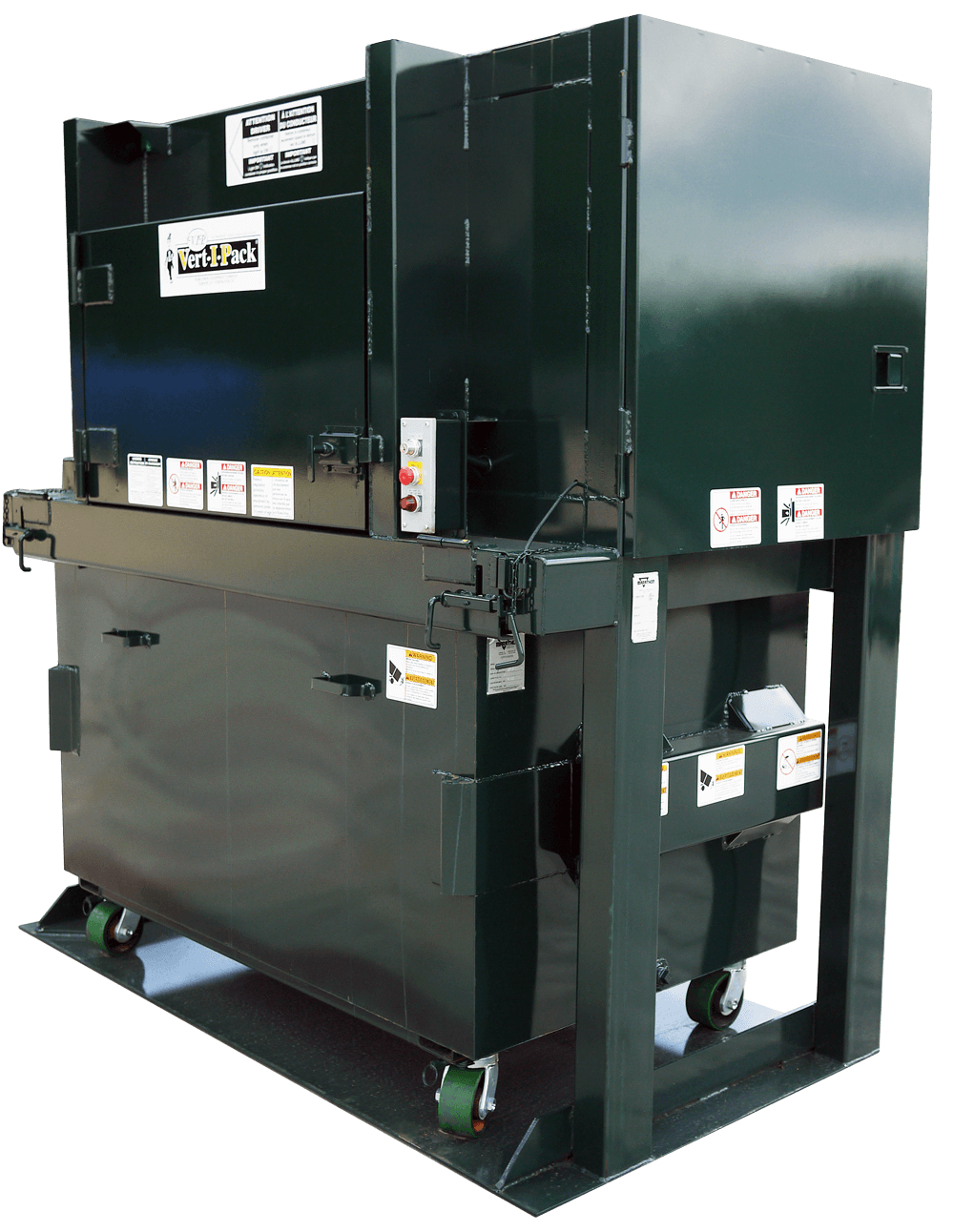

Untouchable VIP & V.I.P. FL/3 Front/Rear Load Compactor
The Untouchable VIP is a real space saver – with more than 13 tons of crushing force, it reduces the contents of many open containers into one Vert-I-Pack container.
Use for front- or rear-load applications
Triple-interlock safety system
The Untouchable VIP is designed with the user in mind and has no heavy or clumsy lids to open and close.
The side-mounted power unit offers easy access for maintenance on the motor and electrical components on the Untouchable VIP.
The Integrated Driver Light on the Untouchable VIP illuminates green to signal the driver that the container is okay to be removed and dumped, making operation quick and simple.
The Untouchable VIP keeps liquids off the ground, which helps control odor and rodents. It also prevents weekend overflow, which eliminates the need to schedule those expensive weekend pickups
The optional security kit (rear feed units only) enables the unit to be fed from inside the building, eliminating the temptation of employees to put merchandise into a box, stash the box in the trash container, and return later to retrieve the merchandise.

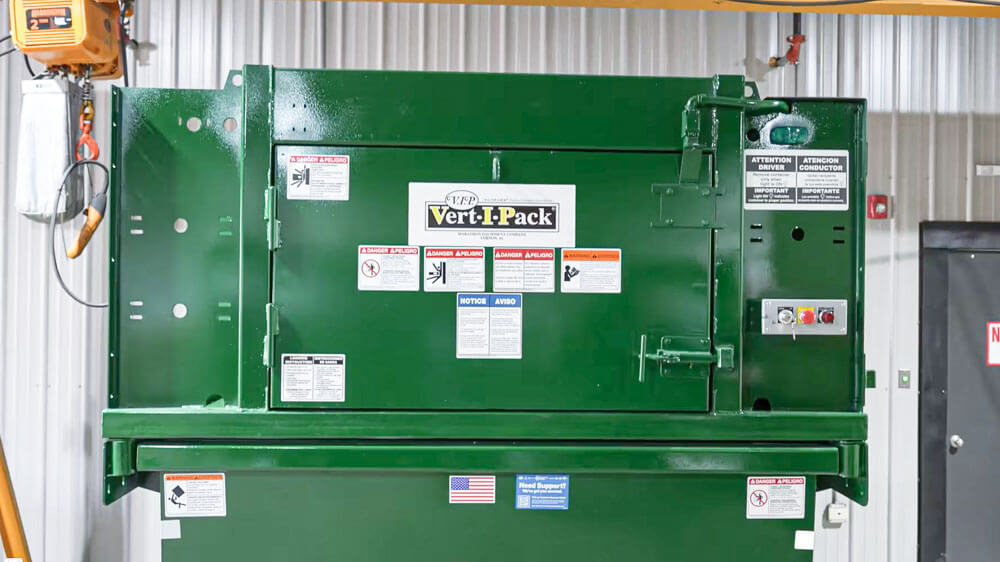

Simple User Operation

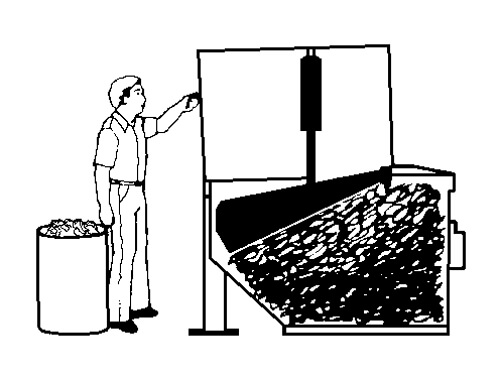

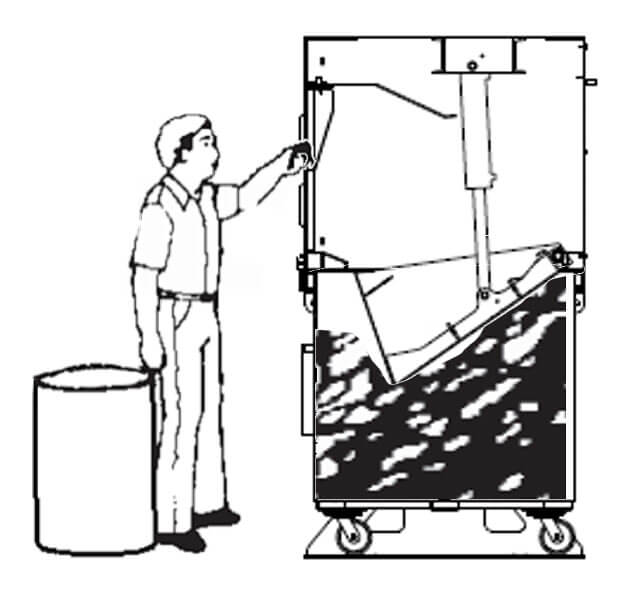

Step One
The operator inserts the key and turns it to the “UP” position. When the ram moves to the up position the door can be opened.

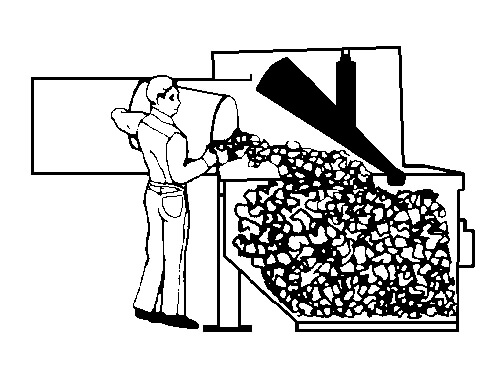

Step Two
The large opening allows even a 30-gallon container to be emptied easily. The new waste material is dumped into the cavity left in the container by the previous ram position.

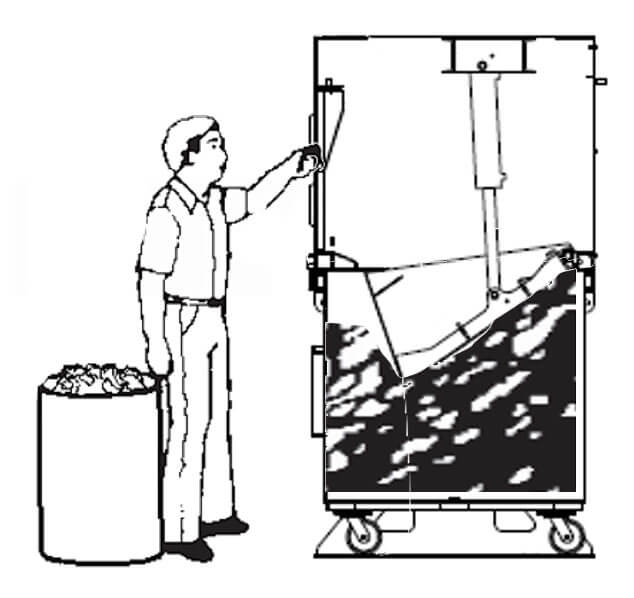

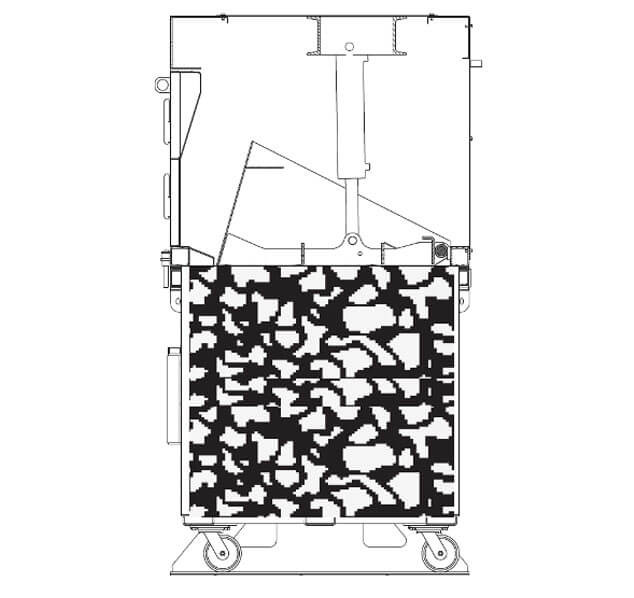

Step Three
After feeding, the operator turns the key to the “pack” position and then removes the key. The ram will cycle automatically to the down position to compact and hold the waste material there until the next loading cycle. More than 13 tons (11,793 kg) of crushing power forces the ram 18″ (457mm) into the container.
Untouchable VIP Triple Lock
The mechanical door interlock prevents the door from being opened at all times except when the unit is in the proper feeding position. A second interlock prevents the unit from cycling (operating) when the door is in the open position. The third interlock prevents the unit from functioning when the container is not in the proper position.
AVAILABLE WITH BAYNE THINLINE CART LIFTER
Equipped with an integral cart lifter, the Untouchable VIP offers an economical and safety-conscious solution for a wide variety of waste material handling applications.
Bayne® Thinline® cart lifters work with standard two-bar roll-out carts and can lift up to 750 lbs. Lifters have a durable, powder-coated finish that can stand up to the elements.
PERFECT FOR TIPPER-SYSTEM APPLICATIONS
The Untouchable VIP is the perfect choice for applications requiring a tipper system. These tippers can extend the benefits of compaction to all areas of operation while keeping equipment investments to a minimum. Carts or containers can be located at individual waste generation sites within the operation, and then emptied into the compactor with the cart-tipper option.
Compaction Options
The perfect configuration for your specific needs
Options are an essential part of virtually any compactor installation. Whether the options are for safety issues, convenience, operation efficiencies, or monitoring systems, waste-handling equipment can be fitted with a variety of customizable features to meet the demands of the application. Marathon compactor options include several categories such as: container-fullness measuring systems, usage-measurement systems, cycle-control systems, power pack options, odor-control systems, and steel options.
View Compactor Options
Marathon Untouchable VIP & VIP FL/3 Brochure
